PPPC141LFBN-RC - Sullins

Description: RECTANGULAR CONNECTOR HEADER FEMALE 14POS .1" GOLD

Download PPPC141LFBN-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PPPC141LFBN-RC - Sullins - PCB symbol
click to zoom
PCB Footprints

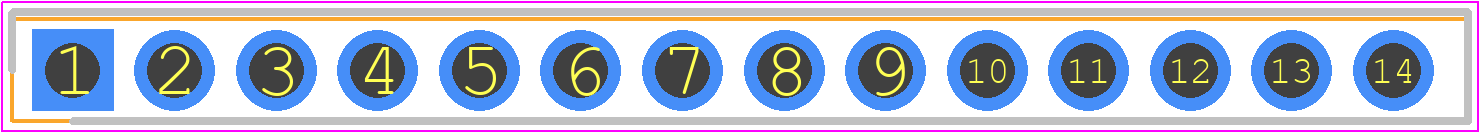

PPPC141LFBN-RC - Sullins PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - PPPC141LFBN-RC
