PPPC172LFBN-RC - Sullins

Description: 34 Position Header Connector 0.100" (2.54mm) Through Hole Gold

Download PPPC172LFBN-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PPPC172LFBN-RC - Sullins - PCB symbol
click to zoom
PCB Footprints

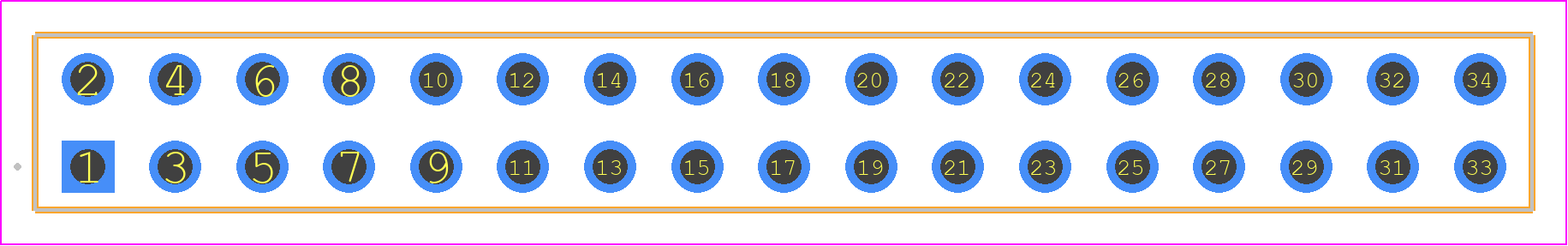

PPPC172LFBN-RC - Sullins PCB footprint - Other - Other - XPYC172LFBN-RC
click to zoom
3D Models
PPPC172LFBN-RC - Sullins - 3D model - Other - XPYC172LFBN-RC
click to zoom

PPPC172LFBN-RC Details

  • Manufacturer Part Number:

    PPPC172LFBN-RC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    9.1

  • Body Breadth:

    0.197 inch

  • Body Depth:

    0.334 inch

  • Body Length:

    1.72 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Insulator Material:

    POLYESTER

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    FLASH inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    34

PPPC172LFBN-RC Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow the recommended torque to ensure secure connections and prevent damage to the connector.
  • Yes, the PPPC172LFBN-RC connector is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and screw locking to maintain the connection's integrity.
  • The operating temperature range for the PPPC172LFBN-RC connector is -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector operates within this range to maintain its performance and reliability.
  • Yes, the PPPC172LFBN-RC connector is compatible with lead-free soldering processes. Sullins Connector Solutions ensures that their products meet the requirements for lead-free soldering, making it suitable for modern manufacturing processes.
  • The recommended cleaning process for the PPPC172LFBN-RC connector involves using a soft-bristled brush and a mild detergent solution. Avoid using harsh chemicals or abrasive materials that may damage the connector's surface.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PPPC172LFBN-RC Overview

Use the download button to access the PPPC172LFBN-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PPPC1, or try a keyword search, such as Headers and Edge Type Connectors
