PPPC222LFBN-RC - Sullins

Description: Female Header, 2.54mm CC, ST, 44 Positions

Download PPPC222LFBN-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

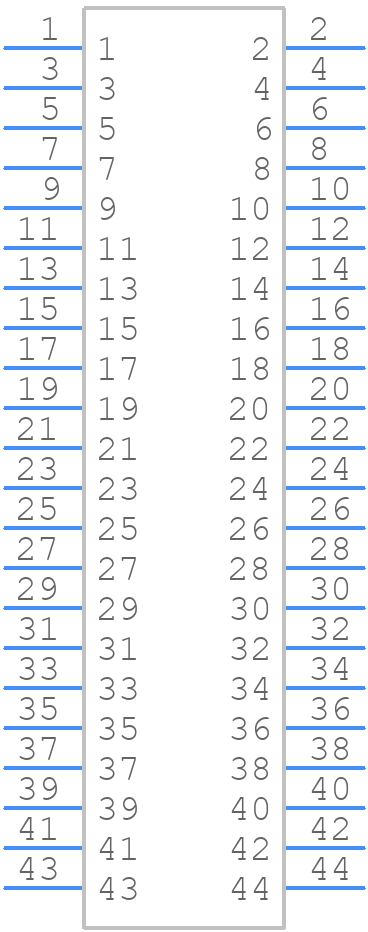

PPPC222LFBN-RC - Sullins - PCB symbol
click to zoom
PCB Footprints

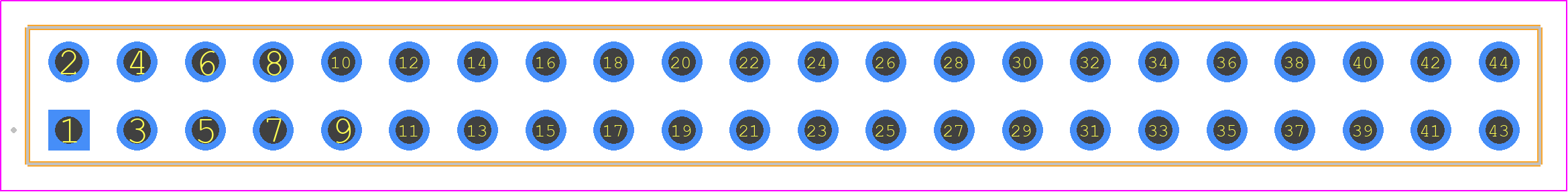

PPPC222LFBN-RC - Sullins PCB footprint - Other - Other - XPYC222LFBN-RC
click to zoom
3D Models
PPPC222LFBN-RC - Sullins - 3D model - Other - XPYC222LFBN-RC
click to zoom

PPPC222LFBN-RC Details

  • Manufacturer Part Number:

    PPPC222LFBN-RC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    9.1

  • Body Breadth:

    0.197 inch

  • Body Depth:

    0.334 inch

  • Body Length:

    2.22 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Insulator Material:

    POLYESTER

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    FLASH inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    44

PPPC222LFBN-RC Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5-1.5 N·m (4-12 in-lbs). It's essential to follow this torque specification to ensure proper mating and prevent damage to the connector.
  • Yes, the PPPC222LFBN-RC connector is designed to withstand high-vibration environments. The screw-lock mechanism and rugged construction ensure reliable connections even in harsh conditions.
  • Yes, the PPPC222LFBN-RC connector is compatible with lead-free soldering processes. The connector's materials and plating are designed to meet the requirements of lead-free soldering, ensuring reliable connections and minimizing the risk of solder joint failures.
  • The operating temperature range for the PPPC222LFBN-RC connector is -40°C to 105°C (-40°F to 221°F). This range ensures reliable performance in a wide range of applications and environments.
  • The PPPC222LFBN-RC connector has a moisture-sealed design, making it suitable for use in humid or wet environments. However, it's essential to follow proper sealing and installation procedures to maintain the connector's integrity and prevent water ingress.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PPPC222LFBN-RC Overview

Use the download button to access the PPPC222LFBN-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PPPC2, or try a keyword search, such as Headers and Edge Type Connectors
