PPPC362LFBN-RC - Sullins

Description: Female Header, 2.54mm CC, ST, 72 Positions

Download PPPC362LFBN-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PPPC362LFBN-RC - Sullins - PCB symbol
click to zoom
PCB Footprints

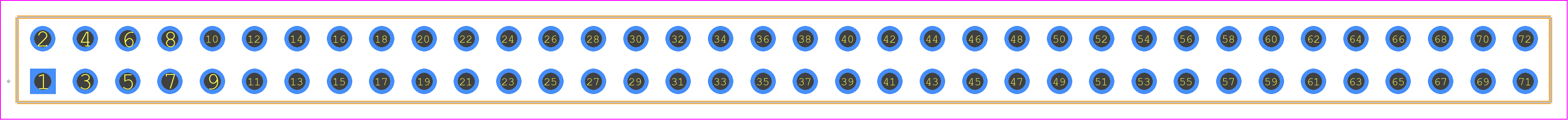

PPPC362LFBN-RC - Sullins PCB footprint - Other - Other - XPYC362LFBN-RC
click to zoom
3D Models
PPPC362LFBN-RC - Sullins - 3D model - Other - XPYC362LFBN-RC
click to zoom

PPPC362LFBN-RC Details

  • Manufacturer Part Number:

    PPPC362LFBN-RC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    9.1

  • Body Breadth:

    0.197 inch

  • Body Depth:

    0.334 inch

  • Body Length:

    3.62 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Insulator Material:

    POLYESTER

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    FLASH inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    72

PPPC362LFBN-RC Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5-1.5 N·m (4-12 in-lbs). It's essential to follow this torque specification to ensure proper mating and prevent damage to the connector.
  • Yes, the PPPC362LFBN-RC connector is designed to withstand high-vibration environments. However, it's crucial to follow proper mounting and screw torque procedures to ensure the connector remains secure and functional.
  • Yes, the PPPC362LFBN-RC connector is compatible with lead-free soldering processes. The connector's terminals are made of a lead-free material that can withstand the higher temperatures associated with lead-free soldering.
  • The operating temperature range for the PPPC362LFBN-RC connector is -40°C to 105°C (-40°F to 221°F). However, it's essential to note that the connector's performance may degrade at extreme temperatures, and it's recommended to consult the datasheet for specific temperature-related specifications.
  • The PPPC362LFBN-RC connector has a moisture-resistant design, but it's not fully waterproof. It's recommended to use additional sealing or conformal coating to protect the connector in humid or wet environments.
