PPTC122LJBN-RC - Sullins

Description: HEADER FEMALE, .100" [2.54mm] CC, 2 ROW, RA, positions per row

Download PPTC122LJBN-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PPTC122LJBN-RC - Sullins - PCB symbol
click to zoom
PCB Footprints

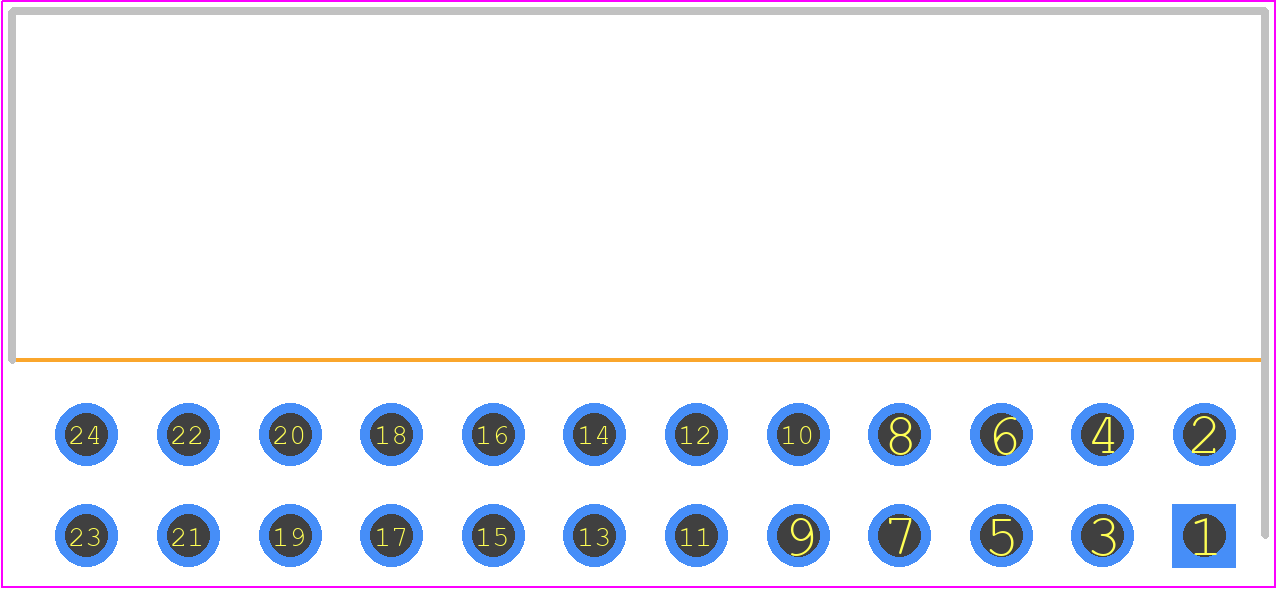

PPTC122LJBN-RC - Sullins PCB footprint - Header, Receptacle - Right Angle PTH Box - Header, Receptacle - Right Angle PTH Box - PPTC122LJBN-RC
click to zoom
3D Models
PPTC122LJBN-RC - Sullins - 3D model - Header, Receptacle - Right Angle PTH Box - PPTC122LJBN-RC
click to zoom

PPTC122LJBN-RC Details

  • Manufacturer Part Number:

    PPTC122LJBN-RC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    9.1

  • Body Breadth:

    0.197 inch

  • Body Length:

    1.22 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    TIN

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Insulator Material:

    POLYESTER

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • PCB Contact Pattern:

    RECTANGULAR

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    24

PPTC122LJBN-RC Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) for 3-5 seconds. However, it's essential to follow the soldering profile recommended by Sullins Connector Solutions or the specific soldering process guidelines for your application.
  • Yes, PPTC122LJBN-RC is compatible with lead-free soldering processes. The connector is designed to meet the requirements of RoHS (Restriction of Hazardous Substances) and is suitable for use with lead-free solders.
  • The maximum operating temperature range for PPTC122LJBN-RC is -40°C to 105°C (-40°F to 221°F). However, it's essential to note that the connector's performance and reliability may be affected at extreme temperatures.
  • While PPTC122LJBN-RC is designed to be a reliable connector, it's not specifically designed for high-vibration or high-shock applications. If your application requires high-vibration or high-shock resistance, you may need to consider additional design considerations or alternative connectors.
  • PPTC122LJBN-RC is designed to be a general-purpose connector and may not be suitable for use in harsh environments. If your application requires exposure to moisture, chemicals, or other environmental stressors, you may need to consider additional design considerations or alternative connectors with enhanced environmental resistance.
