PPTC141LGBN-RC - Sullins

Description: .100” [2.54 mm] Contact Centers, Female Headers

Download PPTC141LGBN-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PPTC141LGBN-RC - Sullins - PCB symbol
click to zoom
PCB Footprints

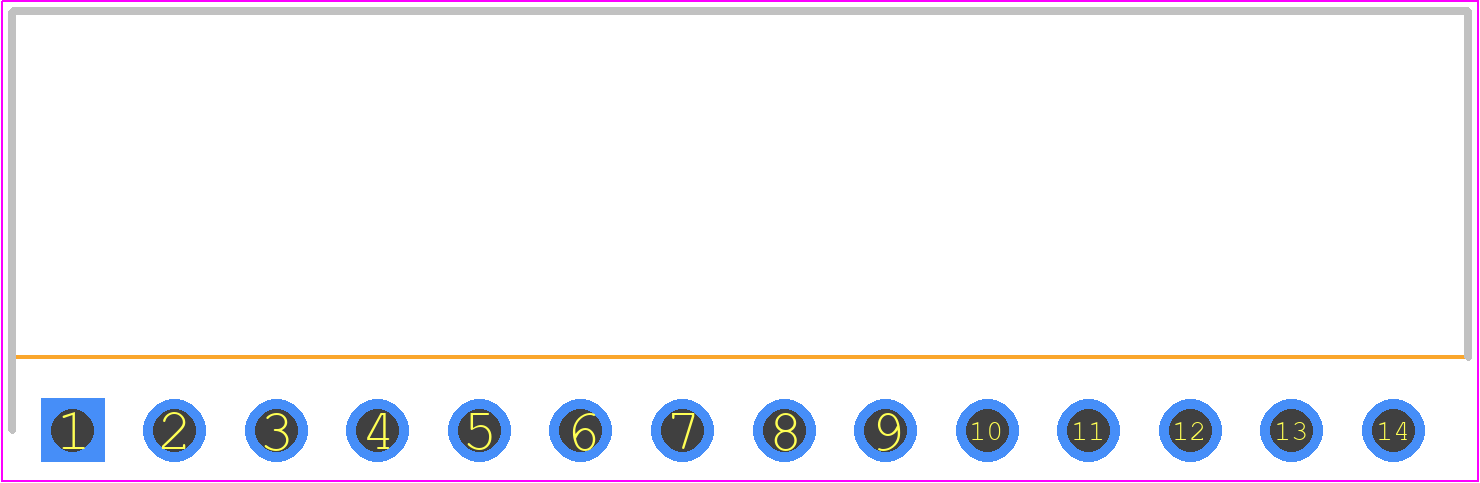

PPTC141LGBN-RC - Sullins PCB footprint - Header, Receptacle - Right Angle PTH Box - Header, Receptacle - Right Angle PTH Box - PPPC141LFBN-RC
click to zoom
3D Models
PPTC141LGBN-RC - Sullins - 3D model - Header, Receptacle - Right Angle PTH Box - PPPC141LFBN-RC
click to zoom

PPTC141LGBN-RC Details

  • Manufacturer Part Number:

    PPTC141LGBN-RC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    9.1

  • Body Breadth:

    0.094 inch

  • Body Length:

    1.42 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    SN

  • Contact Finish Termination:

    TIN

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Insulator Material:

    POLYESTER

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • PCB Contact Pattern:

    RECTANGULAR

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    14

PPTC141LGBN-RC Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.8 Nm (4.4-7.0 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
  • Yes, the PPTC141LGBN-RC is designed to withstand high-vibration environments. The connector's rugged construction and secure screw terminals ensure reliable connections even in applications with intense vibration.
  • The PPTC141LGBN-RC has a rating of IP67, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and protection of the connector when used in outdoor environments to maintain its reliability.
  • The PPTC141LGBN-RC has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure that the connector is used within this temperature range to maintain its reliability and performance.
  • While the PPTC141LGBN-RC is designed for 14 AWG wire, it can accommodate wire sizes between 12 AWG and 16 AWG. However, it's essential to ensure that the wire size is compatible with the connector's terminal design and rating to maintain reliable connections.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PPTC141LGBN-RC Overview

Use the download button to access the PPTC141LGBN-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PPTC1, or try a keyword search, such as Headers and Edge Type Connectors
