The recommended soldering temperature is 260°C (500°F) for 3-5 seconds. However, it's essential to follow the soldering profile recommended by Sullins Connector Solutions or the specific assembly house to ensure reliable connections.
Yes, PPTC182LFBN-RC is compatible with lead-free soldering processes. The connector is designed to meet the requirements of RoHS (Restriction of Hazardous Substances) and is suitable for use with lead-free solders.
The maximum operating temperature range for PPTC182LFBN-RC is -40°C to 125°C (-40°F to 257°F). However, it's essential to note that the connector's performance may degrade at extreme temperatures, and it's recommended to consult the datasheet for specific temperature-related specifications.
Yes, PPTC182LFBN-RC is designed to withstand high-vibration and high-shock applications. The connector's rugged construction and secure locking mechanism ensure reliable connections even in harsh environments. However, it's recommended to consult the datasheet and perform thorough testing to ensure the connector meets the specific requirements of the application.
PPTC182LFBN-RC has a moisture-sealing rating of IP67, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's essential to ensure proper sealing and protection of the connector to prevent water ingress and ensure reliable operation in humid or wet environments.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PPTC182LFBN-RC Overview

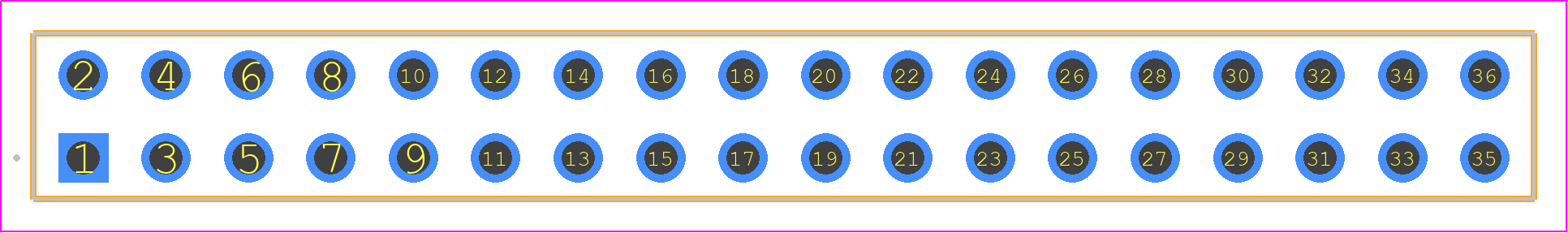

Use the download button to access the PPTC182LFBN-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PPTC1,
or try a keyword search, such as Headers and Edge Type Connectors
