PPTC232LFBN-RC - Sullins

Description: Female Header, 2.54mm CC, ST, 46 Positions

Download PPTC232LFBN-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

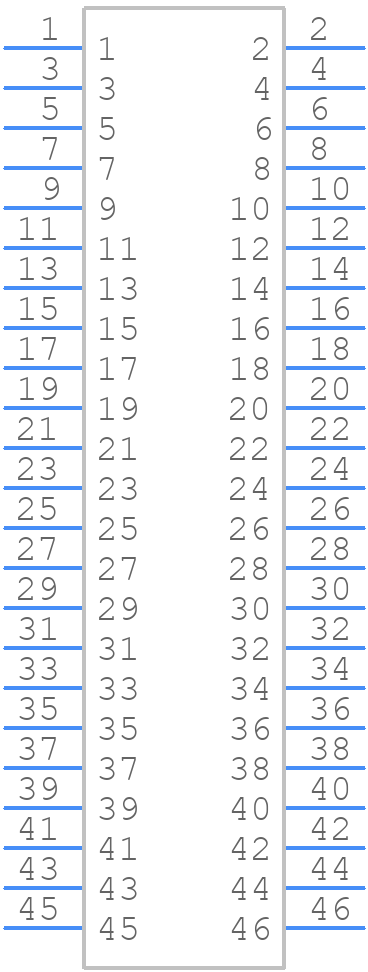

PPTC232LFBN-RC - Sullins - PCB symbol
click to zoom
PCB Footprints

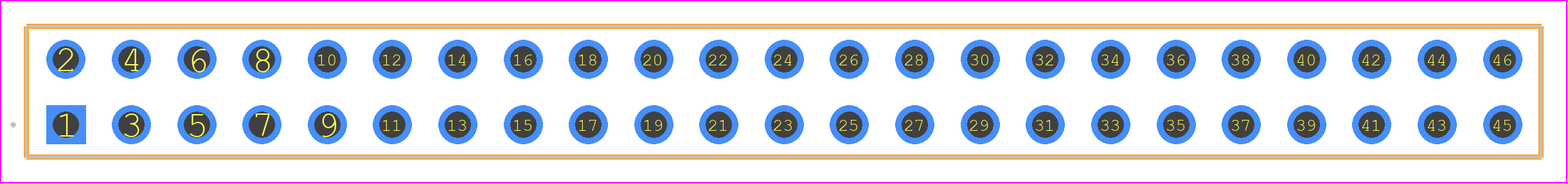

PPTC232LFBN-RC - Sullins PCB footprint - Other - Other - XPYC232LFBN-RC
click to zoom
3D Models
PPTC232LFBN-RC - Sullins - 3D model - Other - XPYC232LFBN-RC
click to zoom

PPTC232LFBN-RC Details

  • Manufacturer Part Number:

    PPTC232LFBN-RC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    9.1

  • Body Breadth:

    0.197 inch

  • Body Depth:

    0.334 inch

  • Body Length:

    2.32 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    SN

  • Contact Finish Termination:

    TIN

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Insulator Material:

    POLYESTER

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    46

PPTC232LFBN-RC Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
  • Yes, the PPTC232LFBN-RC is designed to withstand vibrations and can be used in high-vibration applications. However, it's essential to ensure that the connector is properly secured and that the screw terminals are tightened to the recommended torque to prevent loosening over time.
  • The PPTC232LFBN-RC has a rating of IP20, which means it provides some protection against solid objects and fingers, but it's not designed for outdoor use or exposure to harsh environmental conditions. If you need a connector for outdoor use, you may want to consider a different model with a higher IP rating.
  • While the datasheet specifies 24-20 AWG wire sizes, it's possible to use this connector with other wire sizes. However, you'll need to ensure that the wire size is compatible with the terminal's current rating and that the wire is properly secured to prevent damage or electrical shock.
  • The operating temperature range for the PPTC232LFBN-RC is -40°C to 105°C (-40°F to 221°F). It's essential to ensure that the connector is used within this temperature range to maintain its electrical and mechanical properties.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PPTC232LFBN-RC Overview

Use the download button to access the PPTC232LFBN-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PPTC2, or try a keyword search, such as Headers and Edge Type Connectors
