- Part Number PPTC251LFBN-RC
- Manufacturer Sullins
- Pin Count 25
- Part Category Connector
- Package Category Header, Receptacle - Straight PTH Box

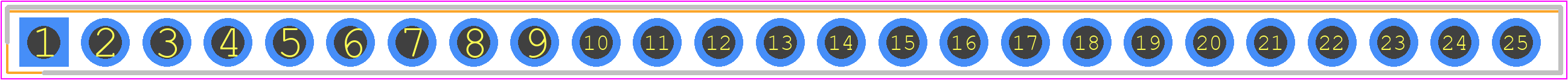

- Footprint Name Header, Receptacle - Straight PTH Box - PPTC251LFBN-RC
- Released Date May 29, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
PPTC251LFBN-RC Details
-
Manufacturer Part Number:
PPTC251LFBN-RC
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
Sullins Connector Solutions
-
YTEOL:
9.1
-
Body Breadth:
0.094 inch
-
Body Depth:
0.334 inch
-
Body Length:
2.52 inch
PPTC251LFBN-RC Frequently Asked Questions (FAQs)
-
The recommended soldering temperature is 260°C (500°F) for 3-5 seconds. However, it's essential to follow the soldering profile recommended by Sullins Connector Solutions or the specific assembly house to ensure reliable connections.
-
Yes, PPTC251LFBN-RC is compatible with lead-free soldering processes. The connector is designed to meet the requirements of RoHS (Restriction of Hazardous Substances) and is suitable for use with lead-free solders.
-
The maximum operating temperature range for PPTC251LFBN-RC is -40°C to 105°C (-40°F to 221°F). However, it's essential to note that the connector's performance may degrade at extreme temperatures, and it's recommended to consult the datasheet for specific temperature-related specifications.
-
Yes, PPTC251LFBN-RC is designed to withstand high-vibration and high-shock applications. The connector's rugged construction and secure termination ensure reliable connections even in harsh environments. However, it's recommended to consult the datasheet and perform thorough testing to ensure the connector meets the specific application requirements.
-
PPTC251LFBN-RC has a moisture-resistant design, but it's not intended for use in submerged or continuously wet environments. The connector can withstand occasional exposure to humidity, but it's essential to follow proper sealing and encapsulation techniques to ensure reliable operation in humid environments.
Trust Checks
Community Provided
System Verified
Community Approved
PPTC251LFBN-RC Overview
Use the download button to access the PPTC251LFBN-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PPTC2,
or try a keyword search, such as Headers and Edge Type Connectors
