PQ2614BHA-100K - Bourns

Description: BOURNS - PQ2614BHA-100K - INDUCTOR, SHIELDED, 10UH, 10%, AEC-Q200

Download PQ2614BHA-100K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PQ2614BHA-100K - Bourns - PCB symbol
click to zoom
PCB Footprints

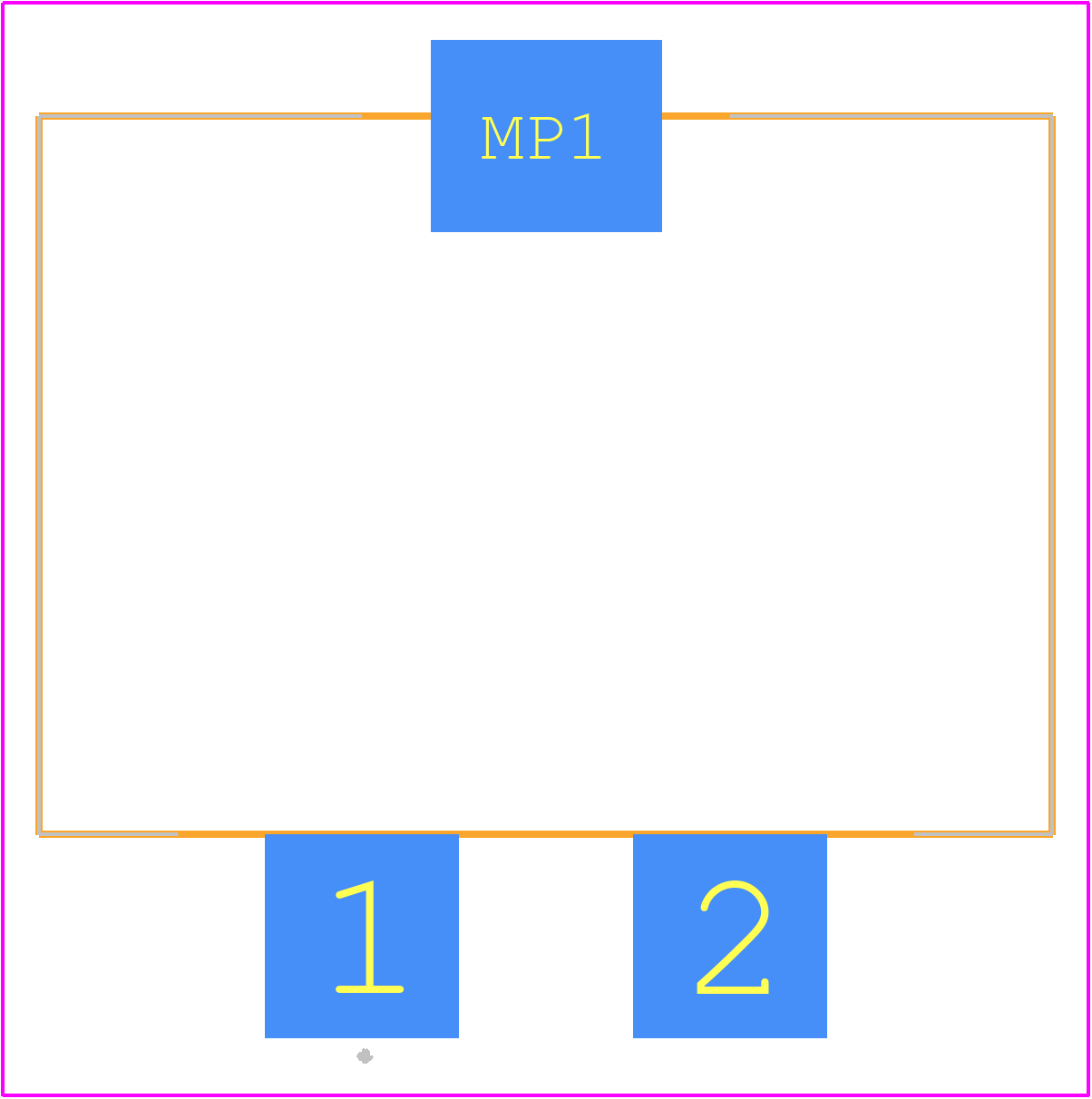

PQ2614BHA-100K - Bourns PCB footprint - Other - Other - PQ2614BLA-1R0K-2
click to zoom
3D Models
PQ2614BHA-100K - Bourns - 3D model - Other - PQ2614BLA-1R0K-2
click to zoom

PQ2614BHA-100K Details

  • Manufacturer Part Number:

    PQ2614BHA-100K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.0019 Ω

  • Inductance-Nom (L):

    10 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    16 mm

  • Package Length:

    27.9 mm

  • Package Style:

    SMT

  • Package Width:

    19.8 mm

  • Packing Method:

    Tray

  • Rated Current-Max:

    30 A

  • Reference Standard:

    AEC-Q200

  • Self Resonance Frequency:

    15 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Placement:

    SINGLE IN-LINE

  • Terminal Shape:

    GULL WING

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    10%
