PQ2614BHA-330K footprint, schematic symbol and 3D model by Bourns

Symbol

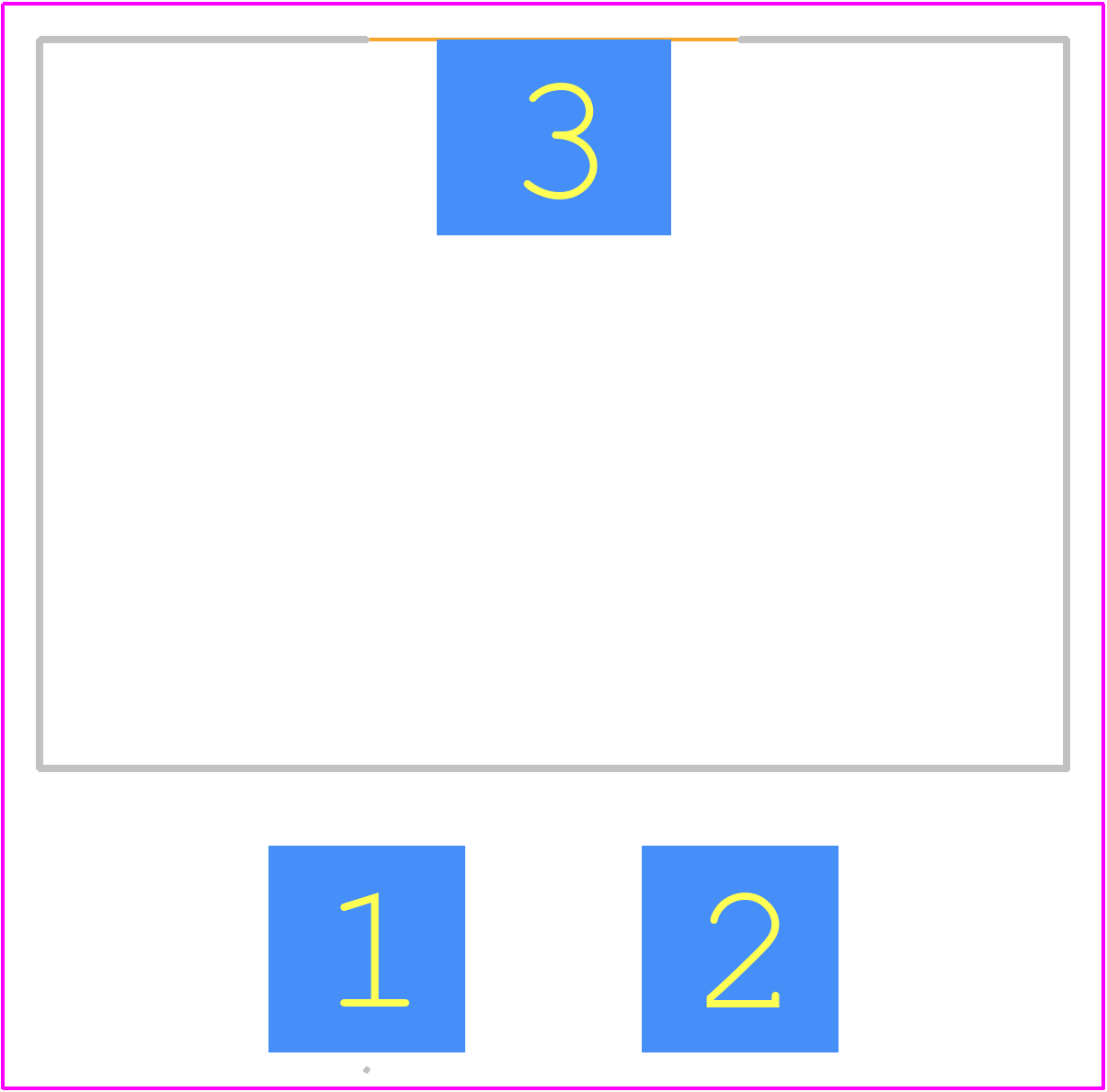

PCB Footprints

3D Models

PQ2614BHA-330K Details

Bourns recommends a symmetrical PCB layout with the inductor centered on the board, and the pads should be at least 1.5 mm from the board edge to minimize radiation and ensure optimal performance.
While the PQ2614BHA-330K is rated for operation up to 125°C, it's essential to derate the current rating according to the temperature derating curve provided in the datasheet to ensure reliable operation.
Bourns recommends using the PQ2614BHA-330K in conjunction with proper PCB design, shielding, and filtering to meet specific EMI requirements. Additionally, consider using Bourns' EMI simulation tools to optimize the design.
Store the PQ2614BHA-330K in a dry, cool place, away from direct sunlight and moisture. Handle the components by the body, avoiding touching the leads or core to prevent damage or contamination.
The PQ2614BHA-330K is designed to withstand moderate vibration levels. However, for high-vibration applications, consider using a more robust mounting method, such as screw-down or adhesive, and ensure the PCB is properly secured to the chassis.

Community Provided

System Verified

Community Approved

Use the download button to access the PQ2614BHA-330K schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PQ261, or try a keyword search, such as Fixed Inductors
