PQ2614BLA-100K - Bourns

Description: Fixed Inductors 10uH 10% 30A AEC-Q200 GULL WING

Download PQ2614BLA-100K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

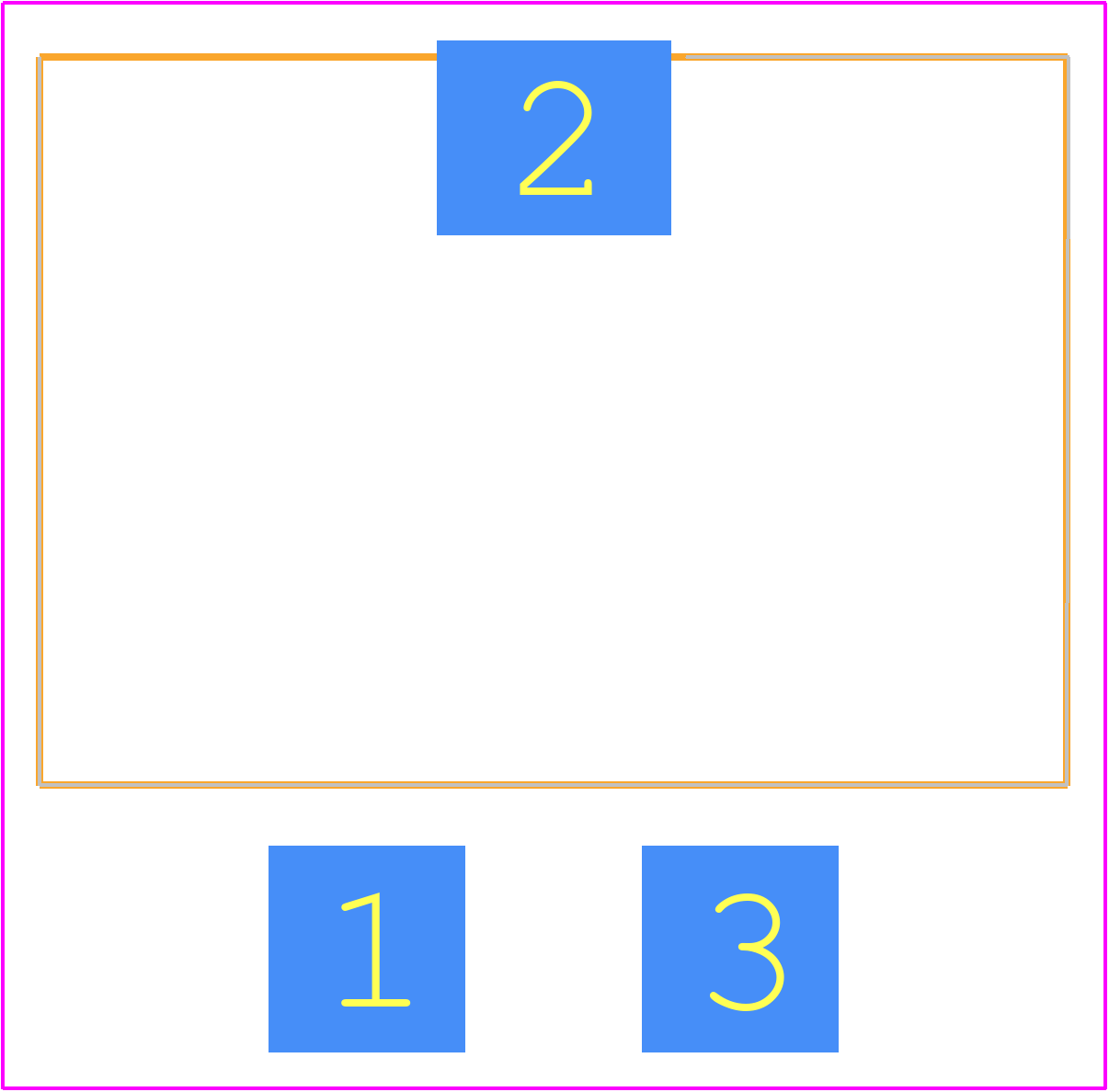

PQ2614BLA-100K - Bourns PCB footprint - Other - Other - PQ2614BLA-100K-3
click to zoom
3D Models
PQ2614BLA-100K - Bourns  - 3D model - Other - PQ2614BLA-100K-3
click to zoom

PQ2614BLA-100K Details

  • Manufacturer Part Number:

    PQ2614BLA-100K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.0016 Ω

  • Inductance-Nom (L):

    10 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    16 mm

  • Package Length:

    27.9 mm

  • Package Style:

    SMT

  • Package Width:

    19.8 mm

  • Packing Method:

    Tray

  • Rated Current-Max:

    30 A

  • Reference Standard:

    AEC-Q200

  • Self Resonance Frequency:

    20 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Placement:

    SINGLE IN-LINE

  • Terminal Shape:

    GULL WING

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    10%

PQ2614BLA-100K Frequently Asked Questions (FAQs)

  • Bourns recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize parasitic inductance and capacitance.
  • Use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder to the pads. Ensure the inductor is centered and evenly spaced on the pads to prevent mechanical stress.
  • The maximum allowable voltage across the PQ2614BLA-100K is 150% of the rated voltage (100 kHz) for a maximum of 100 ms, and 120% of the rated voltage for continuous operation.
  • The PQ2614BLA-100K is rated for operation up to 125°C, but the inductance value may decrease by up to 20% at high temperatures. Ensure proper derating and thermal management to prevent overheating.
  • Yes, the PQ2614BLA-100K is suitable for high-frequency switching applications up to 1 MHz, but be aware of the potential for core losses and ensure proper design considerations for EMI and thermal management.
