PQ2614BLA-330K footprint, schematic symbol and 3D model by Bourns

Symbol

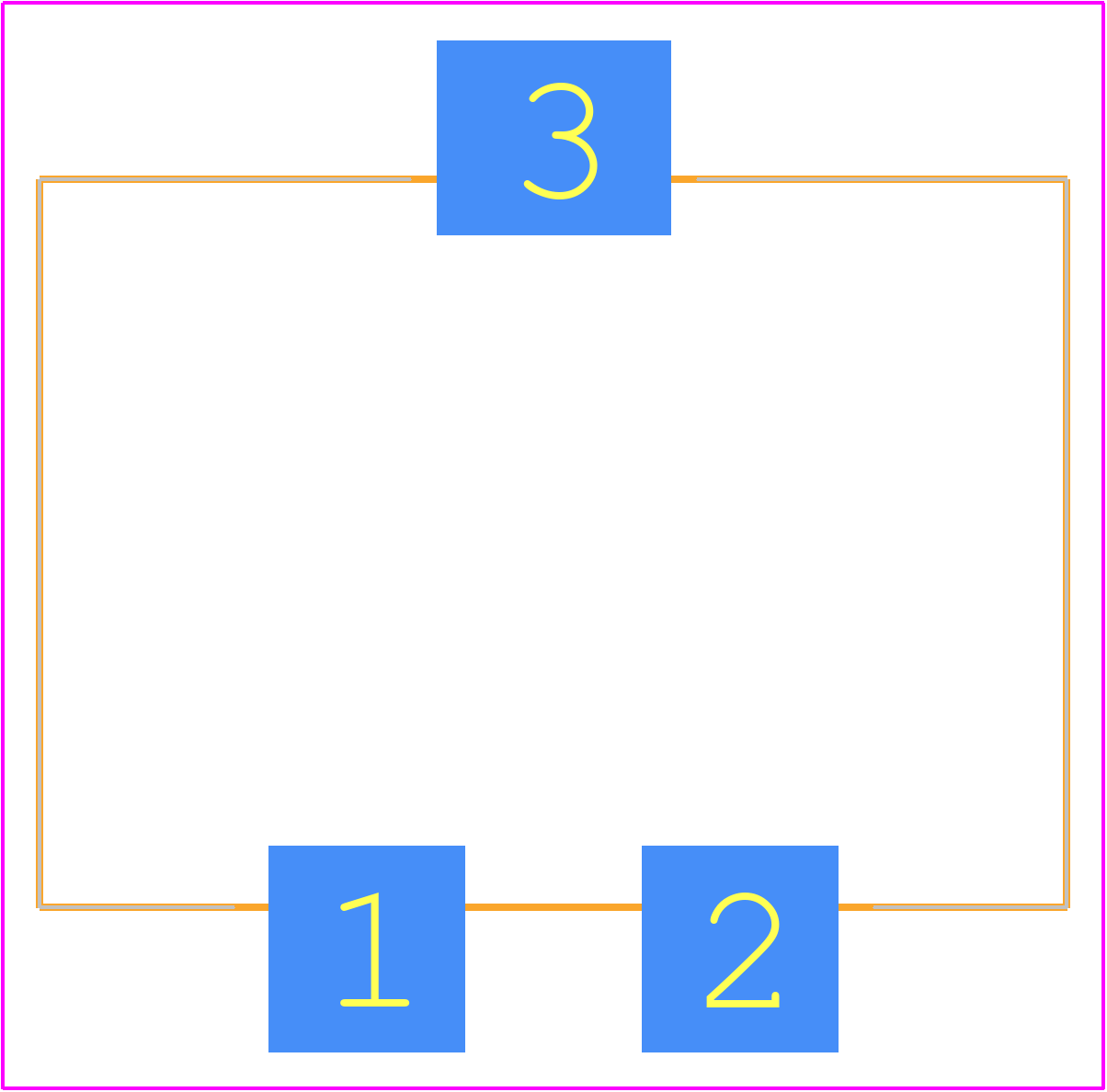

PCB Footprints

3D Models

PQ2614BLA-330K Details

Bourns recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize parasitic inductance and capacitance.
Follow the recommended soldering profile and use a solder with a melting point below 260°C to prevent damage to the component. Ensure the component is properly aligned and the solder joints are clean and free of oxidation.
The PQ2614BLA-330K is rated for operation from -40°C to +125°C, but derating may be necessary for high-temperature applications. Consult the datasheet for specific derating guidelines.
Yes, the PQ2614BLA-330K is designed to withstand vibrations up to 10g peak acceleration, but it's essential to ensure proper PCB mounting and secure the component to prevent mechanical stress.
Follow standard ESD handling procedures, such as using an ESD wrist strap, mat, or workstation, and ensure the component is stored in an ESD-protective package when not in use.

Expert Contribution

System Verified

Community Approved

Use the download button to access the PQ2614BLA-330K schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PQ261, or try a keyword search, such as Fixed Inductors
