Bourns recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize parasitic inductance and capacitance.
The PQ2614BLA-6R8K has a built-in EMI filter and is designed to provide high-frequency noise attenuation. However, additional filtering or shielding may be required depending on the specific application and environment.
The PQ2614BLA-6R8K is rated for operation from -40°C to +125°C, but derating may be required for high-temperature applications. Consult the datasheet for specific derating guidelines.
Yes, the PQ2614BLA-6R8K is designed and manufactured to meet the requirements of high-reliability and safety-critical applications, such as automotive, aerospace, and medical devices. However, additional testing and validation may be required depending on the specific application.
Bourns recommends storing the PQ2614BLA-6R8K in a dry, cool place, away from direct sunlight and moisture. Handling should be done with anti-static precautions, such as using an anti-static wrist strap or mat, to prevent damage from electrostatic discharge.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PQ2614BLA-6R8K Overview

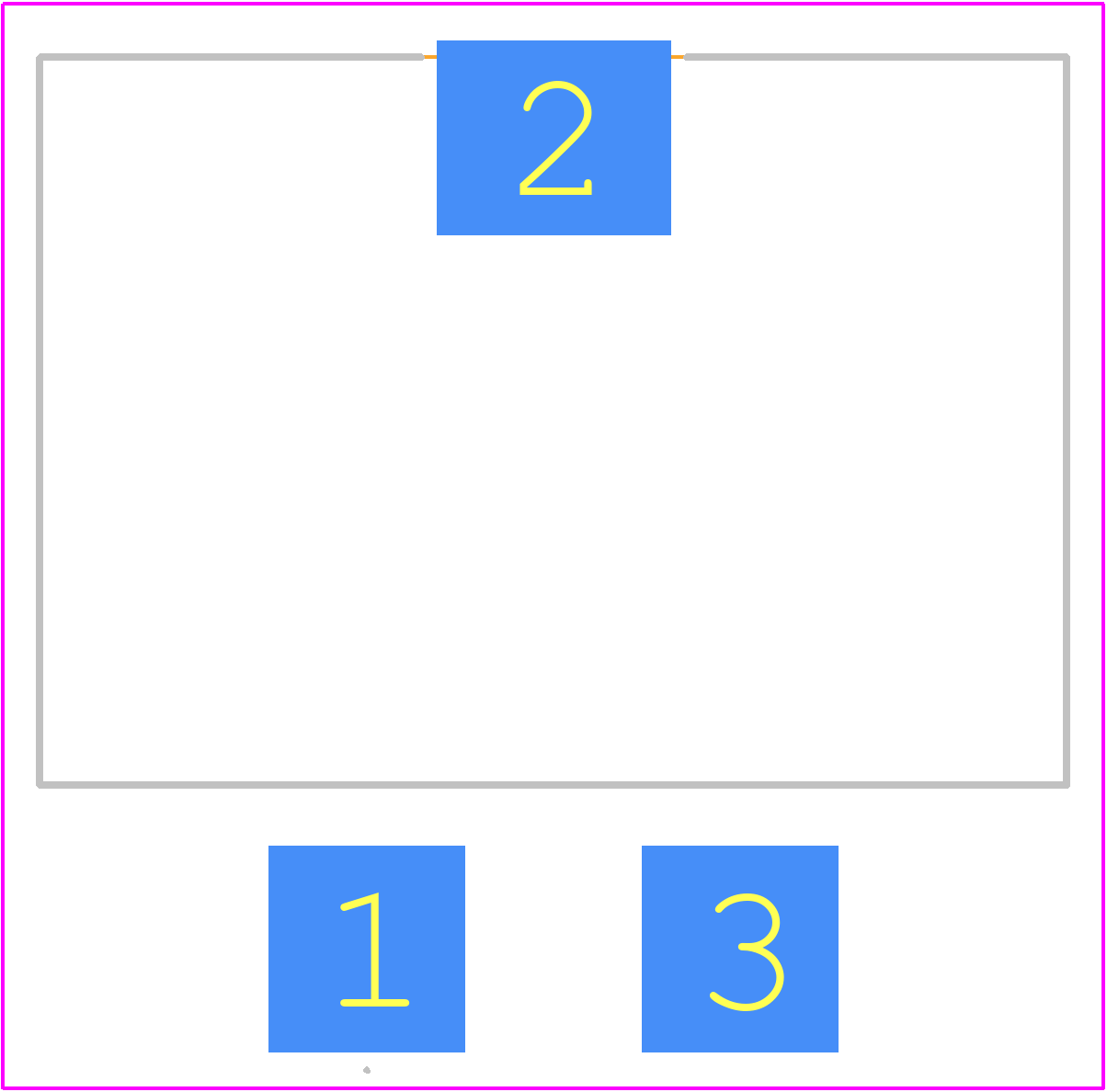

Use the download button to access the PQ2614BLA-6R8K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PQ261,
or try a keyword search, such as Fixed Inductors
