A good PCB layout for the PQ2617BHA-100K involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the PQ2617BHA-100K operates within its specified temperature range, provide adequate heat sinking, avoid overcrowding the PCB, and ensure good airflow around the device. Additionally, consider using a thermal interface material between the device and the heat sink.
Exceeding the maximum ratings of the PQ2617BHA-100K can lead to reduced reliability, permanent damage, or even device failure. It can also cause the device to overheat, leading to a thermal shutdown or a catastrophic failure.
To troubleshoot issues with the PQ2617BHA-100K, start by checking the input voltage, output voltage, and current. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for noise, ringing, or other anomalies on the input and output lines.
The PQ2617BHA-100K is a commercial-grade device and may not be suitable for high-reliability or safety-critical applications. For such applications, consider using a device with a higher reliability rating, such as a device with a higher mean time between failures (MTBF) or a device that meets specific industry standards (e.g., automotive, aerospace, or medical).
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PQ2617BHA-100K Overview

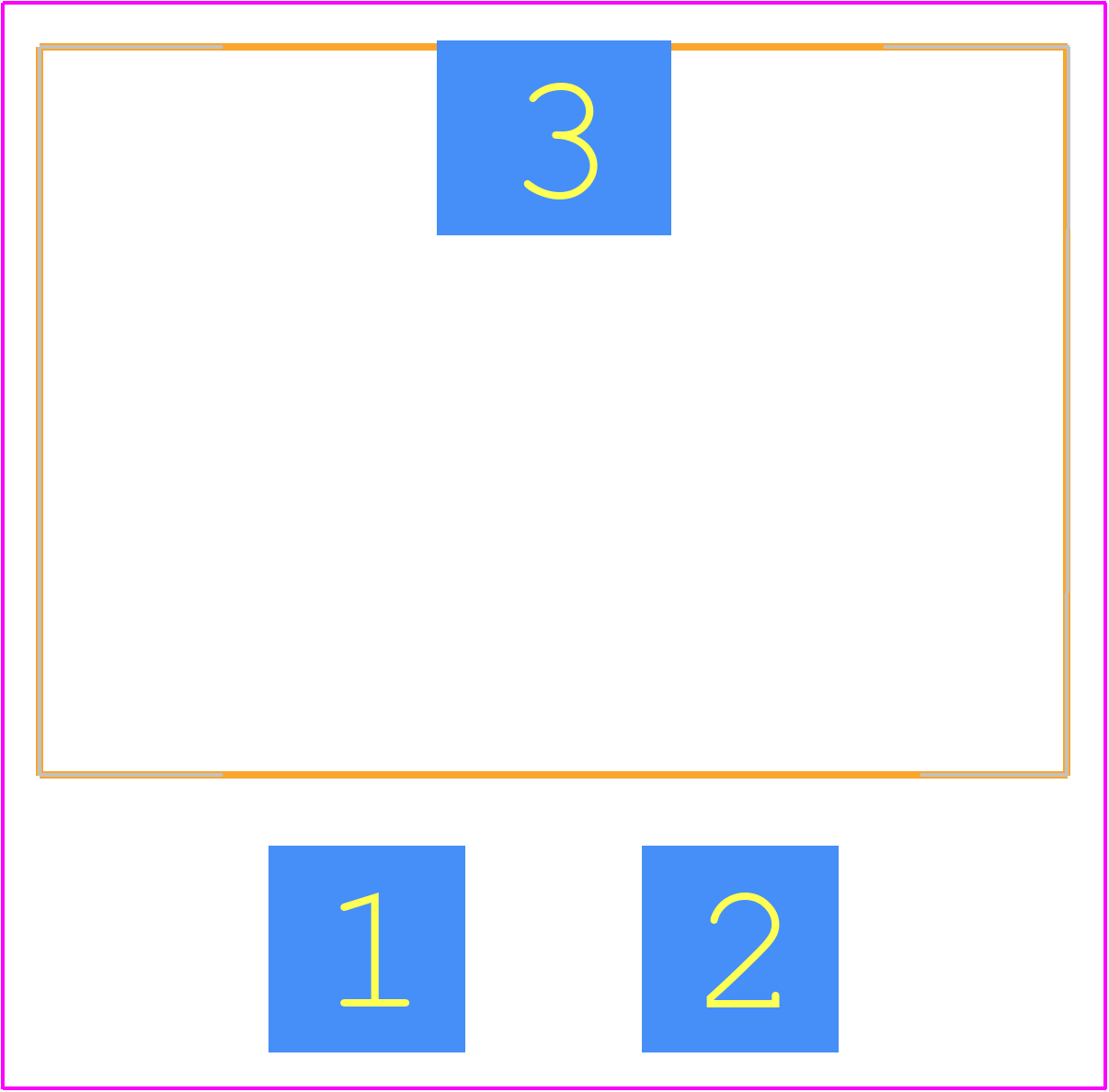

Use the download button to access the PQ2617BHA-100K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PQ261,
or try a keyword search, such as Fixed Inductors
