PQ2617BHA-150K - Bourns

Description: 15 µH Shielded Drum Core, Wirewound Inductor 28 A 2.5mOhm Max Nonstandard

Download PQ2617BHA-150K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PQ2617BHA-150K - Bourns - PCB symbol
click to zoom
PCB Footprints

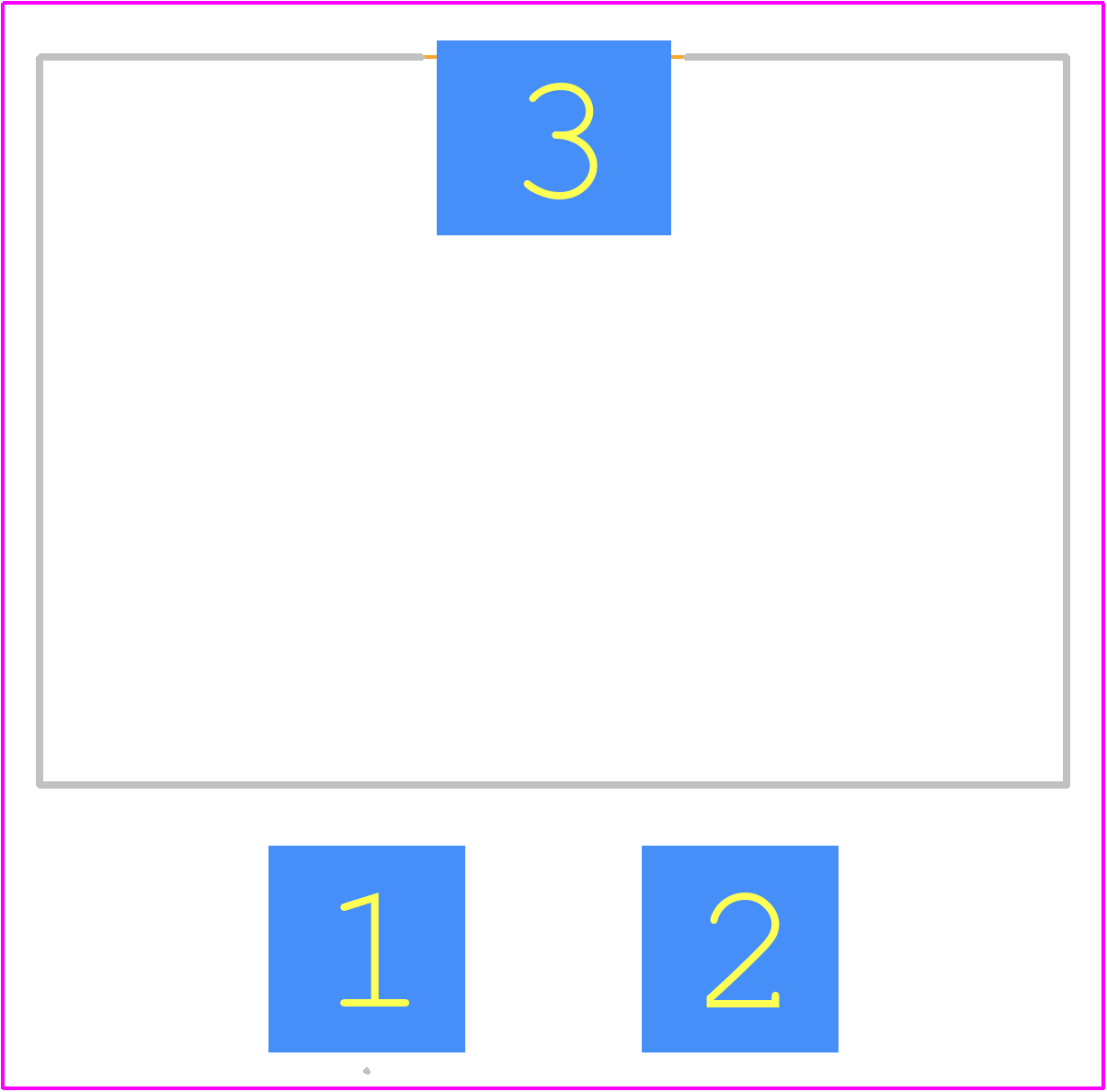

PQ2617BHA-150K - Bourns PCB footprint - Other - Other - 27.90mm x 19.80mm x 19.0mm
click to zoom
3D Models
PQ2617BHA-150K - Bourns - 3D model - Other - 27.90mm x 19.80mm x 19.0mm
click to zoom

PQ2617BHA-150K Details

  • Manufacturer Part Number:

    PQ2617BHA-150K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.0025 Ω

  • Inductance-Nom (L):

    15 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    19 mm

  • Package Length:

    27.9 mm

  • Package Style:

    SMT

  • Package Width:

    19.8 mm

  • Packing Method:

    Tray

  • Rated Current-Max:

    28 A

  • Reference Standard:

    AEC-Q200

  • Self Resonance Frequency:

    16 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Placement:

    SINGLE IN-LINE

  • Terminal Shape:

    GULL WING

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    10%

PQ2617BHA-150K Frequently Asked Questions (FAQs)

  • A good PCB layout for the PQ2617BHA-150K involves keeping the input and output traces separate, using a solid ground plane, and placing the inductor and capacitors close to the IC. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to place the output capacitor close to the IC. Additionally, the output voltage can be stabilized by adding a 10nF capacitor in parallel with the output capacitor.
  • The maximum ambient temperature range for the PQ2617BHA-150K is -40°C to +125°C. However, the device can operate up to 150°C with derating.
  • Yes, the PQ2617BHA-150K is suitable for high-reliability applications. It is built with high-reliability materials and has undergone rigorous testing to ensure its performance and reliability.
  • The power dissipation of the PQ2617BHA-150K can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current.
