A good PCB layout for the PQ2617BHA-220K involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the PQ2617BHA-220K operates within its specified temperature range, provide adequate heat sinking, avoid overcrowding the PCB, and ensure good airflow around the device. Also, consider using a thermal interface material between the device and the heat sink.
Exceeding the maximum ratings of the PQ2617BHA-220K can lead to reduced reliability, permanent damage, or even catastrophic failure. It's essential to ensure that the device operates within its specified voltage, current, and temperature ratings to prevent damage or failure.
To troubleshoot issues with the PQ2617BHA-220K, start by verifying the input voltage, output voltage, and current. Check for overheating, incorrect PCB layout, or incorrect component values. Use an oscilloscope to check for noise, ringing, or oscillations. Consult the datasheet and application notes for guidance.
The PQ2617BHA-220K is a commercial-grade device, and its use in high-reliability or safety-critical applications may require additional testing, validation, and certification. Consult with Bourns Inc or a qualified reliability engineer to determine the device's suitability for such applications.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PQ2617BHA-220K Overview

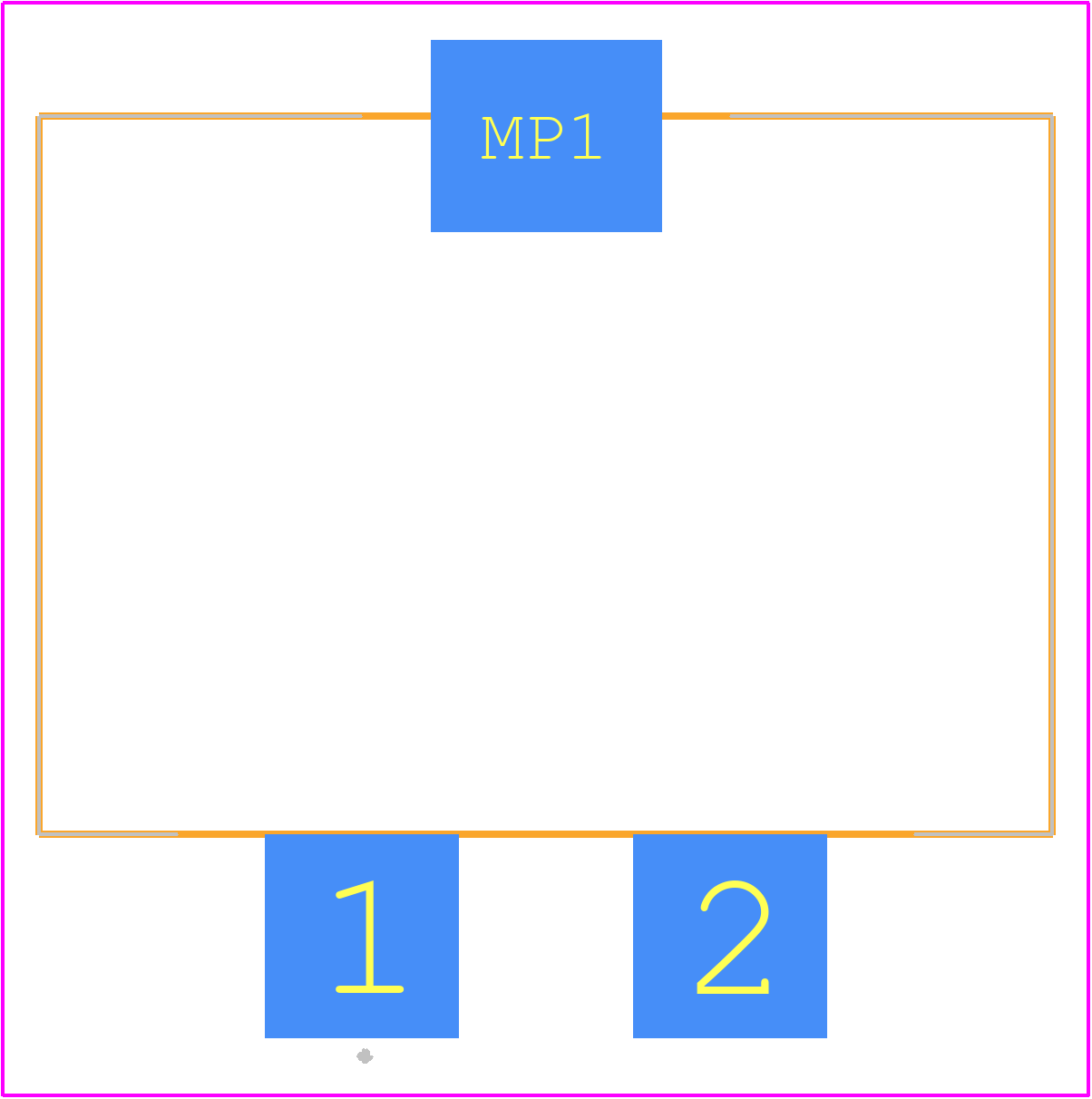

Use the download button to access the PQ2617BHA-220K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PQ261,
or try a keyword search, such as Fixed Inductors
