A good PCB layout for the PQ2617BHA-6R8K would involve keeping the input and output traces separate, using a solid ground plane, and minimizing the distance between the inductor and the capacitor. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the PQ2617BHA-6R8K operates within its specified temperature range, make sure to provide adequate airflow, avoid overheating nearby components, and use a heat sink if necessary. Also, ensure that the component is not exposed to extreme temperatures during storage or handling.
The recommended soldering profile for the PQ2617BHA-6R8K is a peak temperature of 240°C for 5-10 seconds, with a ramp-up rate of 3°C/second and a ramp-down rate of 6°C/second. It's also recommended to use a solder with a melting point of 217°C or higher.
Yes, the PQ2617BHA-6R8K is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for mounting and securing the component to ensure reliable operation.
To troubleshoot issues with the PQ2617BHA-6R8K, start by checking the input voltage, output voltage, and current. Verify that the component is properly soldered and that there are no signs of physical damage. Use an oscilloscope to check for noise and ripple on the output. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PQ2617BHA-6R8K Overview

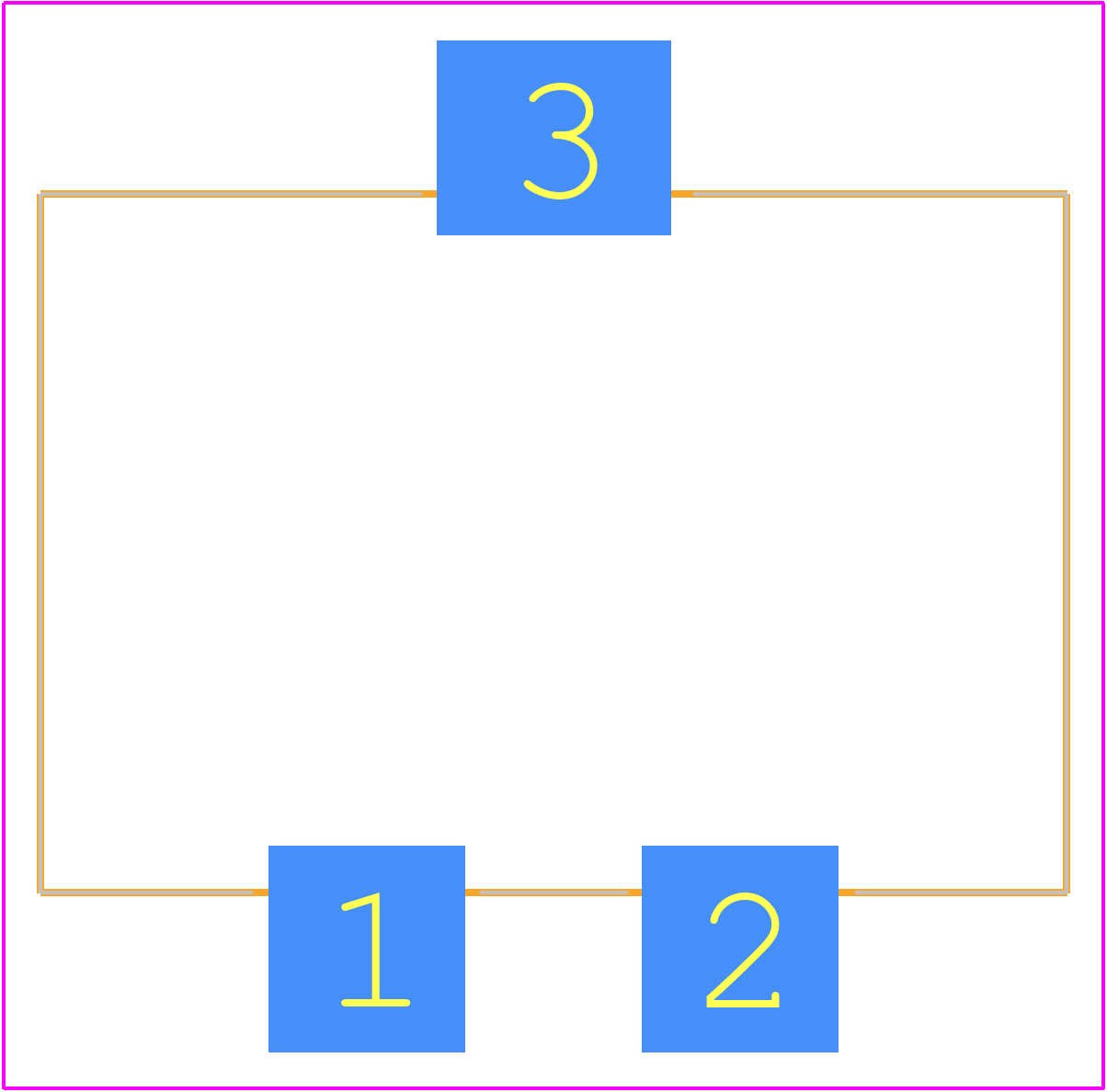

Use the download button to access the PQ2617BHA-6R8K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PQ261,
or try a keyword search, such as Fixed Inductors
