PQG3FRA112 footprint, schematic symbol and 3D model by Switchcraft

Symbol

click to zoom

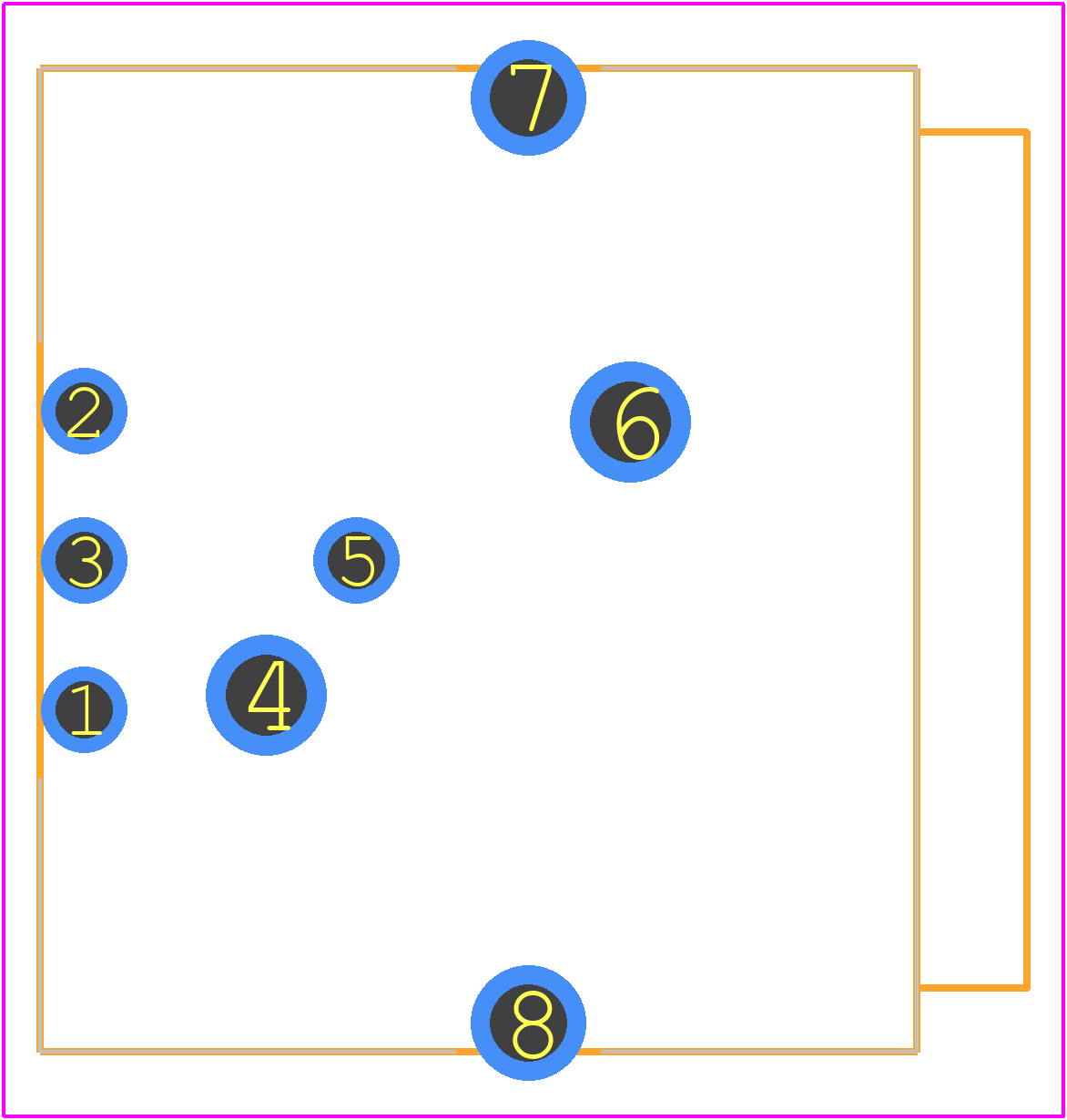

PCB Footprints

PQG3FRA112 - Switchcraft PCB footprint - Other - Other - PQG3FRA112

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PQG3FRA112
Part Number PQG3FRA112
Manufacturer Switchcraft
Pin Count 8
Part Category Connector
Package Category Other
Footprint Name Other - PQG3FRA112
Released Date Sep 26, 2018
Last Modified Date Apr 16, 2026 3:54 AM UTC
Pinout / Pin List Click Here (Member Only)

PQG3FRA112 Details

Manufacturer Part Number:
PQG3FRA112
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.20
Manufacturer:
Switchcraft Conxall
YTEOL:
8
Backshell Type:
SOLID
Body/Shell Style:
RECEPTACLE
Connector Type:
CIRCULAR CONNECTOR
Contact Finish Mating:
TIN
Contact Finish Termination:
TIN
Contact Gender:
FEMALE
Contact Material:
COPPER ALLOY
Coupling Type:
SNAP
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
GLASS FILLED POLYETHYLENE
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD AND PANEL
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
3

PQG3FRA112 Frequently Asked Questions (FAQs)

The recommended torque for the screws on the PQG3FRA112 is 10-12 in-lbs (1.1-1.4 Nm).
Yes, the PQG3FRA112 is designed to withstand high-vibration environments and is suitable for use in applications where vibration is a concern.
The operating temperature range of the PQG3FRA112 is -40°C to 125°C (-40°F to 257°F).
Yes, the PQG3FRA112 is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's recommended to consult the datasheet and manufacturer's guidelines for specific environmental conditions.
Yes, the PQG3FRA112 is designed to support high-speed data transmission rates, making it suitable for applications that require fast data transfer.

Trust Checks

Expert Contribution

System Verified

Community Approved

PQG3FRA112 Overview

Use the download button to access the PQG3FRA112 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like PQG3F, or try a keyword search, such as Other Circular Connectors
