CUI recommends a PCB layout with a solid ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, a thermal interface material (TIM) with a thermal conductivity of 1W/m-K or higher is suggested between the module and the heat sink.
To ensure reliability and longevity, operate the module within the recommended temperature range (–40°C to +85°C). Implement proper thermal management, and ensure the module is not exposed to moisture, vibration, or physical stress. Regularly inspect the module for signs of wear or damage.
The PQMC3-D48-D12-S is designed to meet CISPR 22 Class B emissions standards. To minimize EMI and RFI, use a shielded enclosure, keep cables and wires away from the module, and use EMI filters or common-mode chokes as needed. Ground the module's shield to the system's chassis ground.
Yes, the PQMC3-D48-D12-S can be used in redundant or parallel configurations. However, it's essential to ensure proper synchronization and control of the modules to prevent instability or damage. Consult CUI's application notes or contact their technical support for guidance on implementing redundant or parallel configurations.
When working with the PQMC3-D48-D12-S, ensure you follow proper safety precautions to avoid electrical shock, injury, or damage. Use protective equipment, such as safety glasses and insulated tools, and avoid touching electrical components or terminals. Ensure the module is installed and operated in accordance with the datasheet and applicable safety standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PQMC3-D48-D12-S Overview

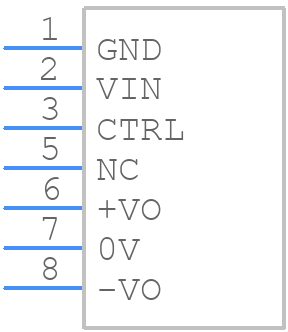

Use the download button to access the PQMC3-D48-D12-S schematic symbol, PCB footprint, and 3D model.
