CUI recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible to minimize EMI and noise. Additionally, it's recommended to use a common mode choke and a 10nF capacitor between the input and output for further noise reduction.
To ensure reliability in high-temperature environments, it's essential to follow the recommended derating curves for the module's output power and input voltage. Additionally, make sure to provide adequate airflow and consider using a heat sink or thermal interface material to reduce the module's operating temperature.
The maximum cable length for the input and output connections depends on the specific application and the type of cable used. As a general guideline, CUI recommends keeping the input cable length to a minimum (less than 6 inches) and the output cable length to less than 12 inches to minimize voltage drops and EMI.
Yes, the PQME3-D24-S3-M can be used in a redundant or parallel configuration to achieve higher power output or to provide redundancy in critical applications. However, it's essential to follow CUI's guidelines for parallel and redundant operation, and to ensure that the modules are properly synchronized and configured to avoid any potential issues.
According to CUI's datasheet, the typical MTBF for the PQME3-D24-S3-M is 1.5 million hours at 25°C, calculated using the Telcordia SR-332 method. However, this value can vary depending on the specific application, operating conditions, and environmental factors.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PQME3-D24-S3-M Overview

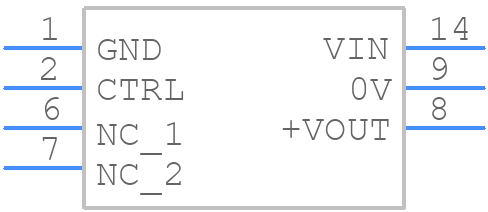

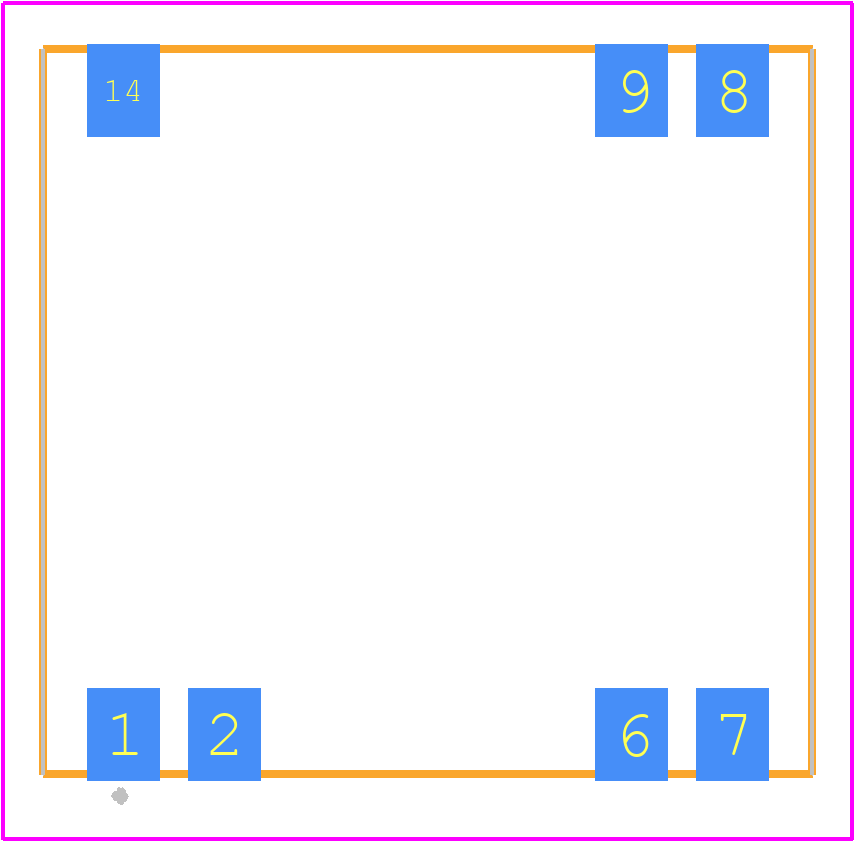

Use the download button to access the PQME3-D24-S3-M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PQME3,
or try a keyword search, such as Power Supply Modules
