CUI Inc recommends a PCB layout with a solid ground plane, minimal trace lengths, and a decoupling capacitor (e.g., 10uF) between the input and output pins to reduce noise and ensure stable operation.
To ensure reliability, follow the recommended derating curves for temperature and output power. Additionally, ensure good airflow, and consider using a heat sink or thermal interface material to reduce the module's operating temperature.
The maximum allowable output capacitance is 10uF. Exceeding this value may cause instability or oscillation in the module. If a larger capacitance is required, consult with CUI Inc's application engineers for guidance.
Yes, the PQP3-D12-S15-M can be used in redundant or parallel configurations. However, it's essential to ensure that the modules are properly synchronized and that the output capacitance is split between the modules to prevent instability.
The typical start-up time for the PQP3-D12-S15-M is around 10-20ms. However, this can vary depending on the input voltage, output load, and other factors. Consult the datasheet or contact CUI Inc for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PQP3-D12-S15-M Overview

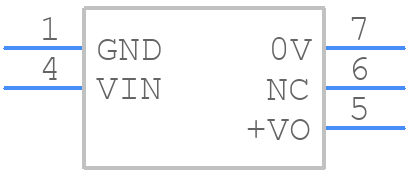

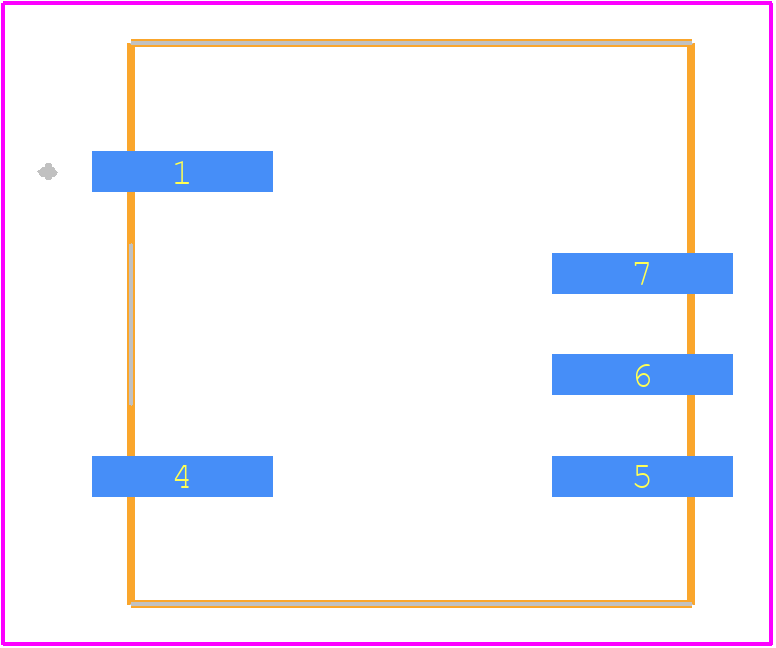

Use the download button to access the PQP3-D12-S15-M schematic symbol, PCB footprint, and 3D model.
