PQQ6W-Q24-S3-S - CUI Inc.

PQQ6W-Q24-S3-S Details

• Manufacturer Part Number:

  PQQ6W-Q24-S3-S

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

• Package Description:

  SIP-8/7

• ECCN Code:

  EAR99

• Manufacturer:

  CUI Inc

• YTEOL:

  7.6

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  BS; CE; EN; IEC

• Efficiency (Main Output):

  78%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  9 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-PSIP-T7

• Length:

  22 mm

• Line Regulation-Max:

  1%

• Load Regulation-Max:

  1.5%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  7

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  1.35 A

• Output Voltage-Max:

  3.366 V

• Output Voltage-Min:

  3.234 V

• Output Voltage-Nom:

  3.3 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SIP

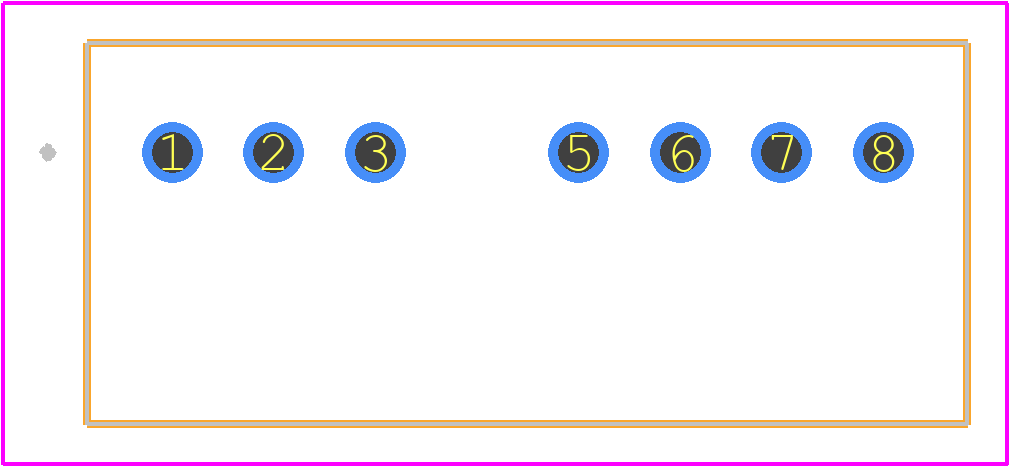

• Package Equivalence Code:

  SIP7/8,.1

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Protections:

  OVER CURRENT; SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.03535 Vrms

• Screening Level:

  EN 62368-1

• Seated Height-Max:

  12.5 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  SINGLE

• Total Power Output-Max:

  4 W

• Trim/Adjustable Output:

  NO

• Width:

  9.5 mm
