The recommended PCB layout involves keeping the input and output traces separate, using a solid ground plane, and placing the converter near a heat sink or metal enclosure. Thermal management involves ensuring good airflow, using thermal pads or thermal tape, and keeping the ambient temperature within the specified range.
The PR16-12V-540-2A has built-in input voltage transient protection, which can withstand voltage spikes up to 20% above the nominal input voltage. However, it's still recommended to add external transient voltage suppressors or filters if the input voltage is expected to be highly unstable.
The maximum capacitive load that the PR16-12V-540-2A can drive is not explicitly stated in the datasheet. However, as a general rule of thumb, it's recommended to limit the output capacitance to 10-20 times the output filter capacitance specified in the datasheet to avoid stability issues.
Yes, the PR16-12V-540-2A can be used in a redundant or parallel configuration, but it requires careful design and consideration of the system's overall architecture, including synchronization, current sharing, and fault detection. It's recommended to consult with Same Sky's application engineers for guidance on implementing such a configuration.
The expected lifespan and reliability of the PR16-12V-540-2A depend on various factors, including the operating conditions, ambient temperature, and quality of the input power. Same Sky provides reliability data and MTBF calculations based on industry-standard models, but it's recommended to consult with their application engineers for a more detailed analysis of the converter's performance in a specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PR16-12V-540-2A Overview

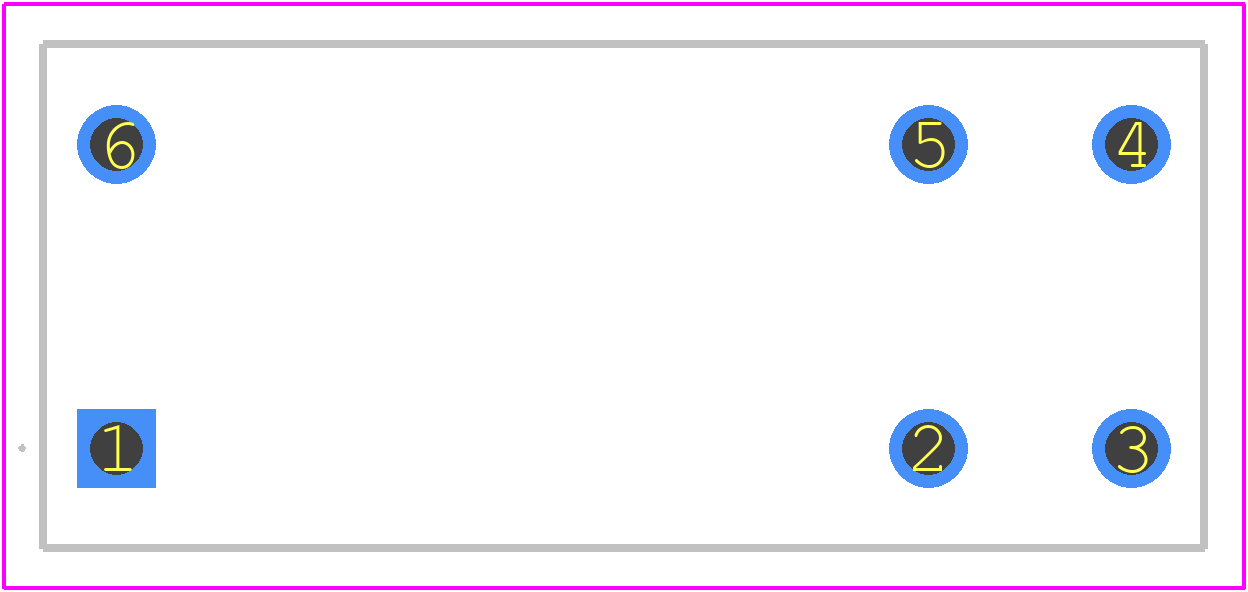

Use the download button to access the PR16-12V-540-2A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PR16-,
or try a keyword search, such as Power/Signal Relays
About Same Sky
CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications.
CUI Devices is headquartered in Lake Oswego, Oregon.
