PRD15-Q24-S5-P-D footprint, schematic symbol and 3D model by CUI Inc.

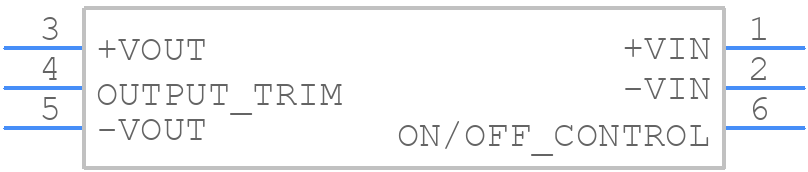

Symbol

click to zoom

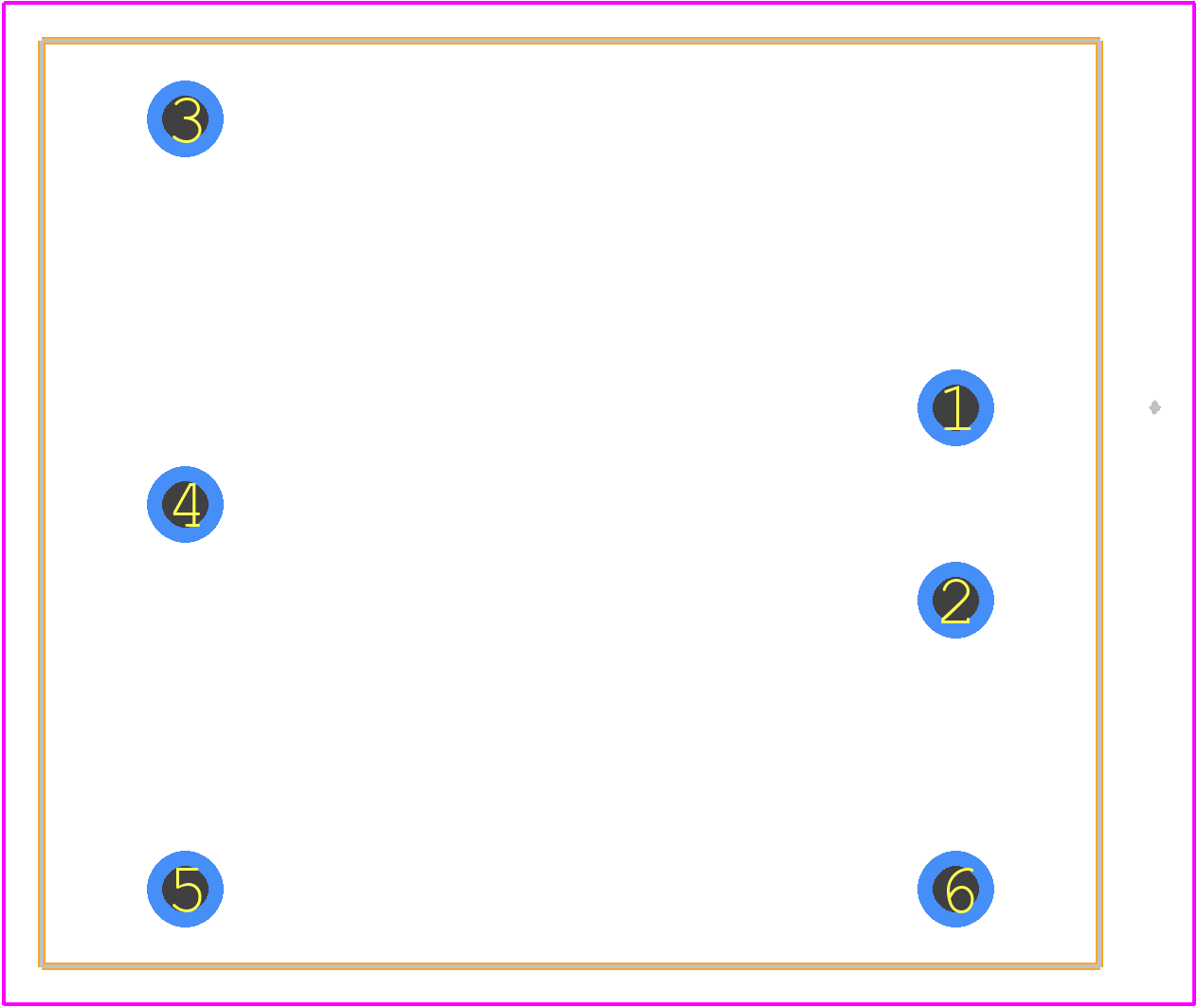

PCB Footprints

PRD15-Q24-S5-P-D - CUI Inc. PCB footprint - Other - Other - PRD15-Q24-S5-P-D-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PRD15-Q24-S5-P-D
Part Number PRD15-Q24-S5-P-D
Manufacturer CUI Inc.
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - PRD15-Q24-S5-P-D-2
Released Date Mar 8, 2017
Last Modified Date Apr 21, 2024 9:17 AM UTC
Pinout / Pin List Click Here (Member Only)

PRD15-Q24-S5-P-D Details

Manufacturer Part Number:
PRD15-Q24-S5-P-D
Brand Name:
CUI Inc
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
DIP-6
ECCN Code:
EAR99
Manufacturer:
CUI Inc
YTEOL:
0
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
C-UL-US, CE, CUL, UL
Efficiency (Main Output):
87.3%
Input Voltage-Max:
36 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-XDIP-P6
Length:
27.9 mm
Line Regulation-Max:
0.05%
Load Regulation-Max:
0.075%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
3 A
Output Voltage-Max:
5.5 V
Output Voltage-Min:
4.5 V
Output Voltage-Nom:
5 V
Package Body Material:
UNSPECIFIED
Package Code:
DIP
Package Equivalence Code:
DIP6,.8
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Peak Reflow Temperature (Cel):
260
Protections:
OVER CURRENT, OVER VOLTAGE, OVER TEMPERATURE, SHORT CIRCUIT
Ripple Voltage (Main Out):
0.0441875 Vrms
Seated Height-Max:
8.9 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
15 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.05 s
Width:
24.4 mm

PRD15-Q24-S5-P-D Frequently Asked Questions (FAQs)

A recommended PCB layout is to keep the input and output traces separate, use a solid ground plane, and place the DC-DC converter near the input capacitors to minimize noise and EMI.
To ensure reliable start-up and shutdown, add a soft-start circuit to limit the inrush current, and use a voltage supervisor to monitor the output voltage and prevent unwanted start-ups.
The maximum allowable capacitance for the output filter capacitors is 220uF to prevent oscillation and ensure stability.
Use an overcurrent protection (OCP) circuit to limit the output current, and an overvoltage protection (OVP) circuit to prevent damage from voltage spikes or surges.
Use a low-ESR ceramic or film capacitor with a value of 10uF to 22uF to filter the input voltage and reduce ripple.

Trust Checks

Expert Contribution

System Verified

Community Approved

PRD15-Q24-S5-P-D Overview

Use the download button to access the PRD15-Q24-S5-P-D schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like PRD15, or try a keyword search, such as Power Supply Modules
