PREC005DBAN-M71RC - Sullins

Description: Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)

Download PREC005DBAN-M71RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PREC005DBAN-M71RC - Sullins - PCB symbol
click to zoom
PCB Footprints

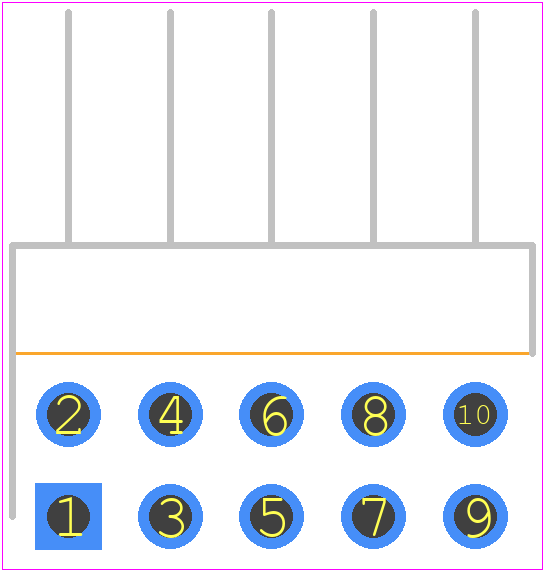

PREC005DBAN-M71RC - Sullins PCB footprint - Header, Unshrouded - Right Angle PTH Pin - Header, Unshrouded - Right Angle PTH Pin - PREC005DBAN-M71RC
click to zoom
3D Models
PREC005DBAN-M71RC - Sullins - 3D model - Header, Unshrouded - Right Angle PTH Pin - PREC005DBAN-M71RC
click to zoom

PREC005DBAN-M71RC Details

  • Manufacturer Part Number:

    PREC005DBAN-M71RC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    9.1

  • Body Breadth:

    0.197 inch

  • Body Depth:

    0.258 inch

  • Body Length:

    0.5 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    SN ON NI

  • Contact Finish Termination:

    TIN OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Filter Feature:

    NO

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.12 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

PREC005DBAN-M71RC Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of PREC005DBAN-M71RC is 0.5-1.5 Nm (0.37-1.06 lbf-in). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the PREC005DBAN-M71RC is designed to withstand high-vibration environments. The connector's rugged construction and secure screw terminals ensure reliable connections even in applications with intense vibrations.
  • The PREC005DBAN-M71RC has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and protection of the connector and its mating components to maintain its environmental rating.
  • The PREC005DBAN-M71RC has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • While the PREC005DBAN-M71RC is designed for use with AWG 20-24 wires, it may be possible to use it with other wire sizes. However, it's essential to consult with Sullins Connector Solutions or a qualified engineer to ensure that the connector can accommodate the desired wire size and meet the required performance and safety standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PREC005DBAN-M71RC Overview

Use the download button to access the PREC005DBAN-M71RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PREC0, or try a keyword search, such as Headers and Edge Type Connectors
