PREC010DBAN-M71RC - Sullins

Description: Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm)

Download PREC010DBAN-M71RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PREC010DBAN-M71RC - Sullins - PCB symbol
click to zoom
PCB Footprints

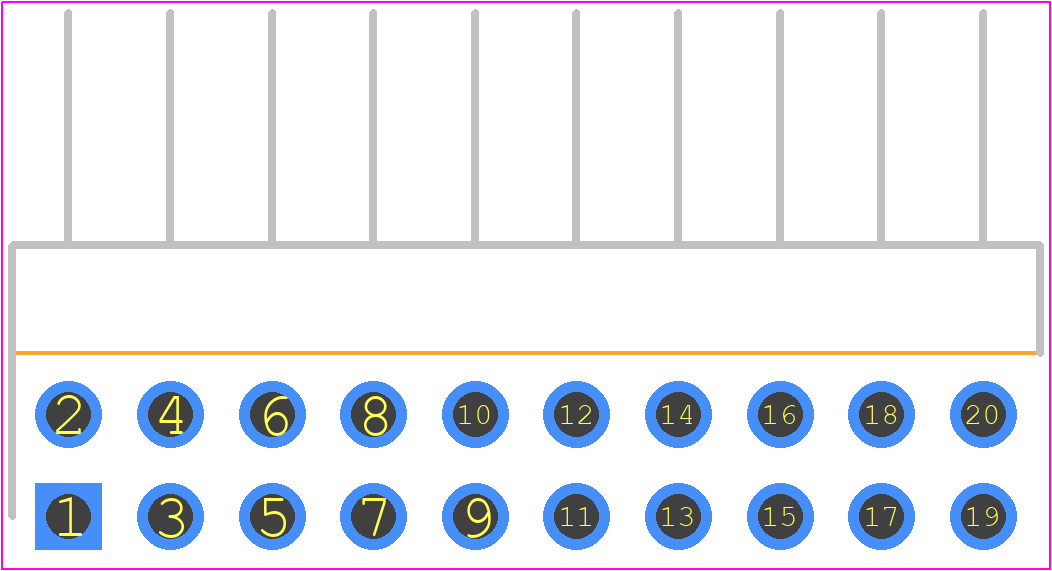

PREC010DBAN-M71RC - Sullins PCB footprint - Header, Unshrouded - Right Angle PTH Pin - Header, Unshrouded - Right Angle PTH Pin - PREC010DBAN-M71RC
click to zoom
3D Models
PREC010DBAN-M71RC - Sullins - 3D model - Header, Unshrouded - Right Angle PTH Pin - PREC010DBAN-M71RC
click to zoom

PREC010DBAN-M71RC Details

  • Manufacturer Part Number:

    PREC010DBAN-M71RC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    9.1

  • Body Breadth:

    0.197 inch

  • Body Depth:

    0.258 inch

  • Body Length:

    1 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    SN ON NI

  • Contact Finish Termination:

    TIN OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Filter Feature:

    NO

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.12 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

PREC010DBAN-M71RC Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the PREC010DBAN-M71RC is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to IEC 61373 Cat. 2. However, it's recommended to consult with Sullins Connector Solutions or a qualified engineer to ensure the connector meets the specific vibration requirements of your application.
  • The PREC010DBAN-M71RC has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector operates within this range to maintain its performance and reliability.
  • The PREC010DBAN-M71RC has a sealed construction that provides some protection against moisture and contaminants. However, it's not designed for use in extremely harsh environments. If your application requires exposure to high humidity, chemicals, or other environmental stressors, you may need to consider additional protection measures or consult with Sullins Connector Solutions for a more suitable connector option.
  • The PREC010DBAN-M71RC is designed for use with AWG 20-24 wires. While it may be possible to use wires of other sizes, it's not recommended as it may affect the connector's performance and reliability. Consult with Sullins Connector Solutions or a qualified engineer to determine the suitability of the connector for your specific wire size requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PREC010DBAN-M71RC Overview

Use the download button to access the PREC010DBAN-M71RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PREC0, or try a keyword search, such as Headers and Edge Type Connectors
