The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the PREC018DAAN-RC is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
The PREC018DAAN-RC has a rating of IP67, which means it's protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's not recommended for continuous outdoor exposure or extreme environmental conditions. For such applications, consider using connectors with higher IP ratings or additional protection measures.
The PREC018DAAN-RC has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
While the PREC018DAAN-RC is designed for AWG 18-24 wires, it may be possible to use it with other wire sizes. However, it's crucial to verify the wire size and insulation diameter to ensure proper fit and connection reliability. Consult with Sullins Connector Solutions or a qualified engineer for guidance on using alternative wire sizes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PREC018DAAN-RC Overview

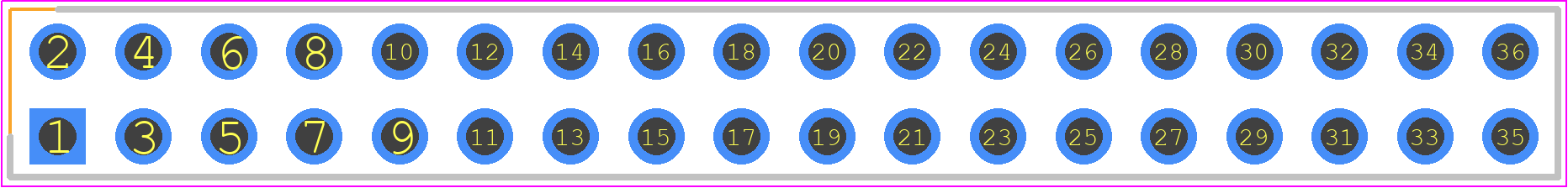

Use the download button to access the PREC018DAAN-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PREC0,
or try a keyword search, such as Headers and Edge Type Connectors
