PREC040SAAN-RC - Sullins

Description: CONN HEADER VERT 40POS 2.54MM

Download PREC040SAAN-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

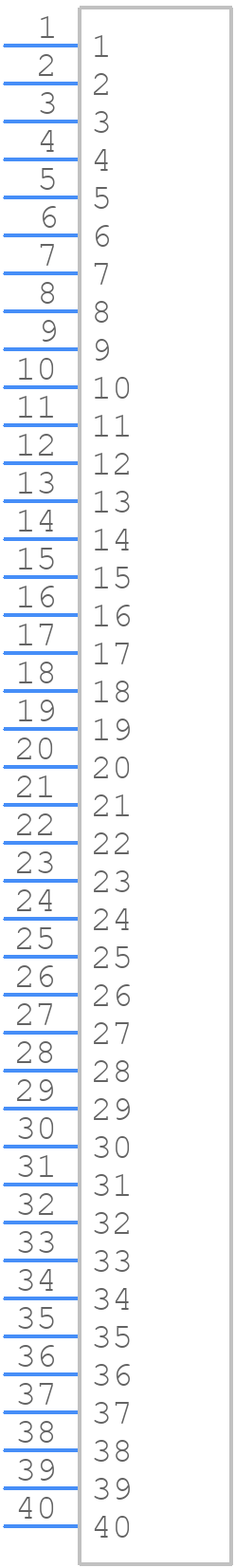

PREC040SAAN-RC - Sullins - PCB symbol
click to zoom
PCB Footprints

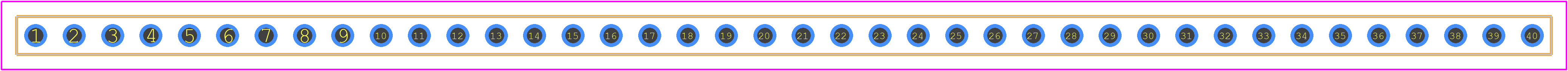

PREC040SAAN-RC - Sullins PCB footprint - Other - Other - PREC040SAAN-RC-2
click to zoom
3D Models
PREC040SAAN-RC - Sullins - 3D model - Other - PREC040SAAN-RC-2
click to zoom

PREC040SAAN-RC Details

  • Manufacturer Part Number:

    PREC040SAAN-RC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    9.1

  • Body Breadth:

    0.1 inch

  • Body Depth:

    0.1 inch

  • Body Length:

    4 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    MATTE TIN OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    100u inch

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.12 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    40

PREC040SAAN-RC Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-1.5 Nm (4.4-13.4 in-lbs) for the screw locks on the PREC040SAAN-RC connector.
  • Yes, the PREC040SAAN-RC connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial control systems, transportation, and aerospace.
  • Yes, the PREC040SAAN-RC connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and humidity resistance up to 95% RH.
  • The PREC040SAAN-RC connector has a mating cycle life of 500 cycles, making it suitable for applications where frequent mating and unmating is required.
  • Yes, the PREC040SAAN-RC connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally conscious applications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PREC040SAAN-RC Overview

Use the download button to access the PREC040SAAN-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PREC0, or try a keyword search, such as Headers and Edge Type Connectors
