Bourns provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic inductance, and reduce electromagnetic interference (EMI).
The PRM162-K420K-103B1 is designed to provide excellent high-frequency noise suppression and EMI filtering. The component's internal construction and materials are optimized to reduce electromagnetic radiation and susceptibility. However, additional shielding or filtering may be required depending on the specific application and environment.
While the datasheet specifies a maximum operating temperature of 125°C, it's essential to consider the derating curves and thermal management strategies to ensure reliable operation over the desired temperature range. Consult with Bourns' application engineers or thermal experts for specific guidance.
The PRM162-K420K-103B1 is designed to meet standard reliability and durability requirements. However, for high-vibration or harsh environments, additional testing and validation may be necessary. Consult with Bourns' application engineers to discuss specific requirements and potential customization options.
Bourns provides guidelines for soldering and assembly in their application notes and manufacturing guides. It's crucial to follow these recommendations to ensure reliable connections, minimize thermal stress, and prevent damage to the component.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PRM162-K420K-103B1 Overview

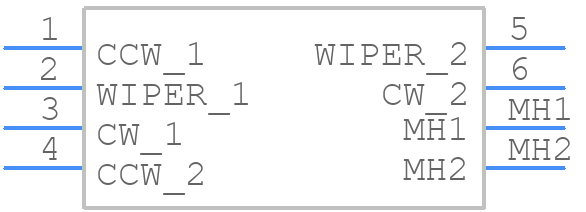

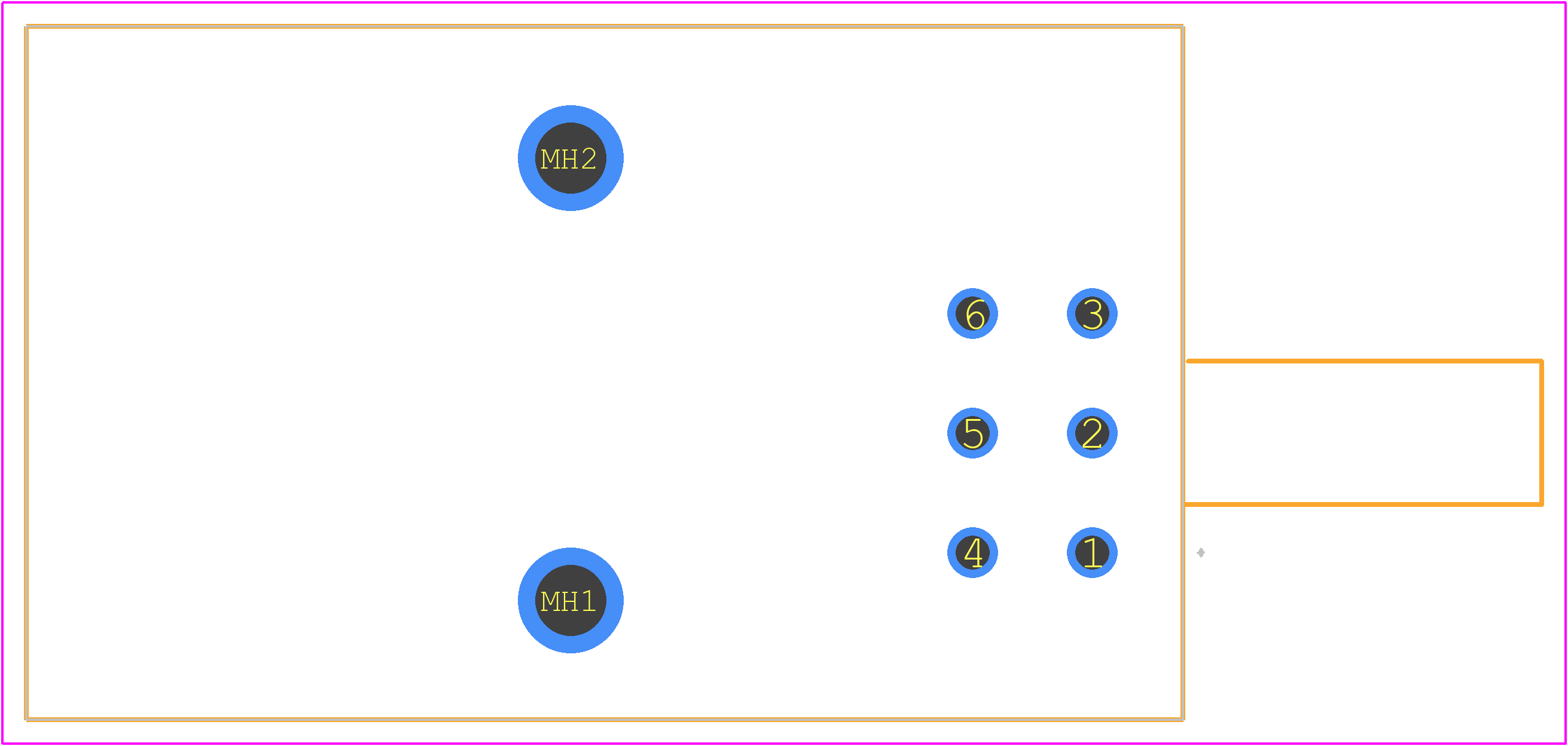

Use the download button to access the PRM162-K420K-103B1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PRM16,
or try a keyword search, such as Variable Resistors
