PRM3W-E12-D12-S - CUI Inc.

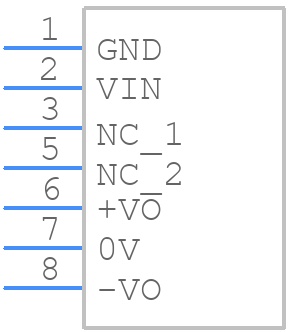

PRM3W-E12-D12-S Details

• Manufacturer Part Number:

  PRM3W-E12-D12-S

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

• Package Description:

  PACKAGE-8/7

• ECCN Code:

  EAR99

• Manufacturer:

  CUI Inc

• YTEOL:

  8.3

• Additional Feature:

  ADDITIONAL -12 V OUTPUT ALSO AVAILABLE; SEATED HGT-NOM

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CE, EN, IEC

• Control Mode:

  VOLTAGE-MODE

• Efficiency (Main Output):

  79%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PSMA-T7

• Length:

  22 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  1%

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  7

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.125 A

• Output Voltage-Max:

  12.36 V

• Output Voltage-Min:

  11.64 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Protections:

  SHORT CIRCUIT; OUTPUT OVERCURRENT; INPUT UNDER VOLTAGE

• Ripple Voltage (Main Out):

  0.03535 Vrms

• Seated Height-Max:

  12.5 mm

• Surface Mount:

  NO

• Switching Frequency-Max:

  300 kHz

• Technology:

  HYBRID

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  3 W

• Trim/Adjustable Output:

  NO

• Width:

  9.5 mm
