PRQ75W-Q48-S15-D - CUI Inc.

PRQ75W-Q48-S15-D Details

• Manufacturer Part Number:

  PRQ75W-Q48-S15-D

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

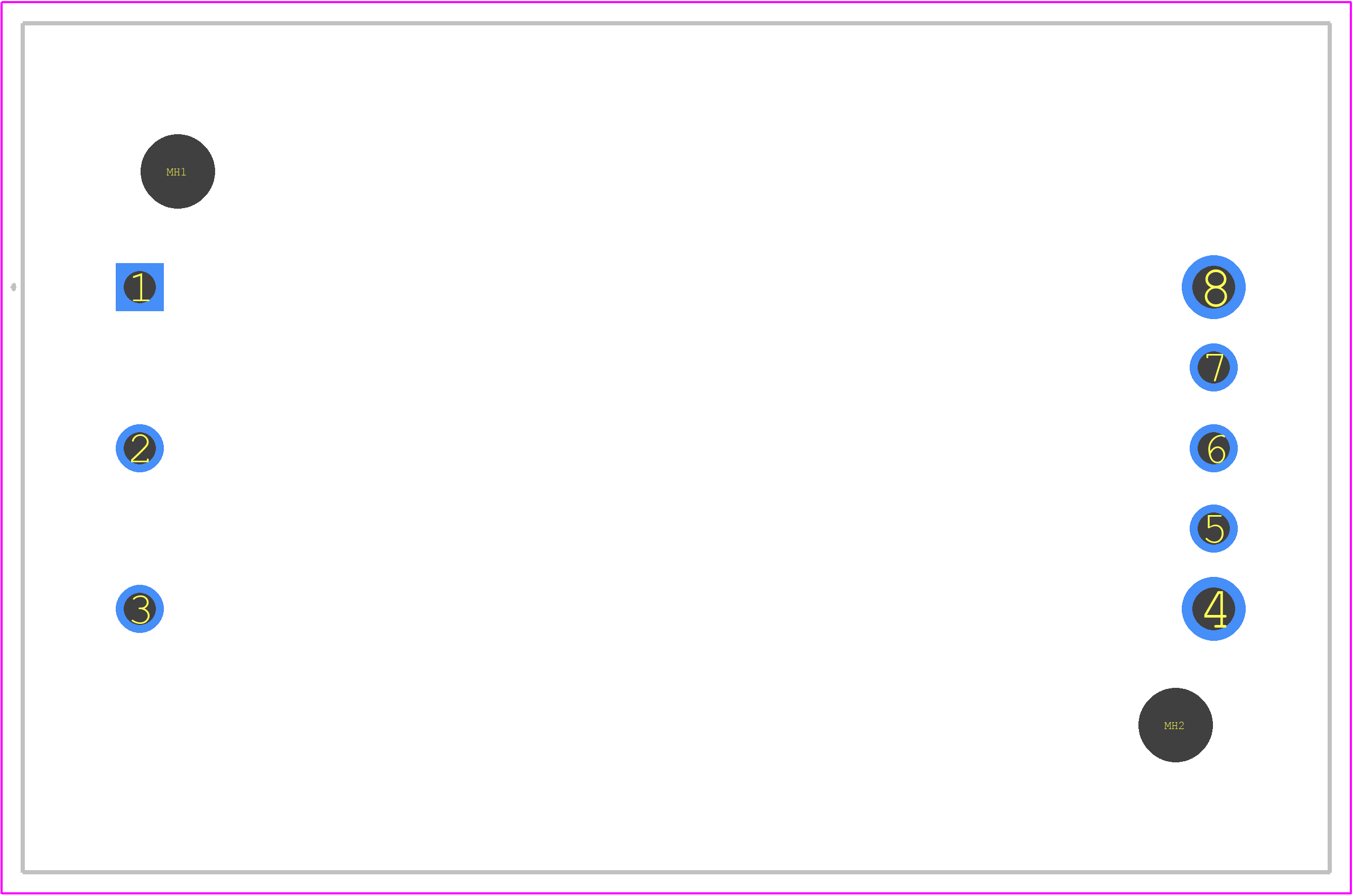

• Package Description:

  1/4 BRICK PACKAGE-8

• ECCN Code:

  EAR99

• Manufacturer:

  CUI Inc

• YTEOL:

  7

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CE, EN, IEC, UL

• Efficiency (Main Output):

  93%

• Input Voltage-Max:

  75 V

• Input Voltage-Min:

  18 V

• Input Voltage-Nom:

  48 V

• JESD-30 Code:

  R-PDMA-P8

• Length:

  61.8 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  0.75%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  5 A

• Output Voltage-Max:

  16.5 V

• Output Voltage-Min:

  14.25 V

• Output Voltage-Nom:

  15 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Protections:

  OVER VOLTAGE; OVER CURRENT; SHORT CIRCUIT; OVER TEMPERATURE

• Ripple Voltage (Main Out):

  0.0707 Vrms

• Seated Height-Max:

  13.7 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  75 W

• Trim/Adjustable Output:

  YES

• Width:

  40.2 mm
