PRT-00127 - SparkFun

Description: 10 (8 + 2) Position Card Connector microSD™ Surface Mount, Right Angle Gold vaCurrent Rating:0.5A Max. Contact Resistance: 100 Milliohms Max. Insulation Resistance:250V DC Or 300V AC For No Less Than 1 Minute, 1000 Megaohms Min. Withstanding Voltage:500V AC For 1 Minute

Download PRT-00127 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this PRT-00127 model

Email notifications will be applied after download.

Send part feedback

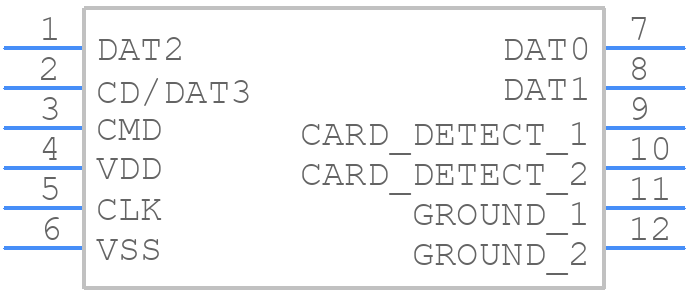

Symbol

PRT-00127 - SparkFun - PCB symbol

PCB Footprints

PRT-00127 - SparkFun PCB footprint - Other - Other - PRT-00127-2

3D Models

PRT-00127 - SparkFun - 3D model - Other - PRT-00127-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for PRT-00127
Part Number PRT-00127
Manufacturer SparkFun
Pin Count 12
Part Category Connector
Package Category Other
Footprint Name Other - PRT-00127-2
Released Date Jul 1, 2025
Last Modified Date Jul 1, 2025 11:27 AM UTC
Pinout / Pin List Click Here (Member Only)

PRT-00127 Details

Manufacturer Part Number:
PRT-00127
Manufacturer:
SparkFun Electronics

Trust Checks

Community Provided

System Verified

Community Approved

PRT-00127 Overview

Use the download button to access the PRT-00127 schematic symbol, PCB footprint, and 3D model.
