PRTR5V0U4Y,125 - Nexperia

Description: Diode Zener Single 7.5V 20% 6Pin UMT NXP PRTR5V0U4Y,125 Zener Diode, 7.5V 20% SMT 6-Pin SOT-363

Download PRTR5V0U4Y,125 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

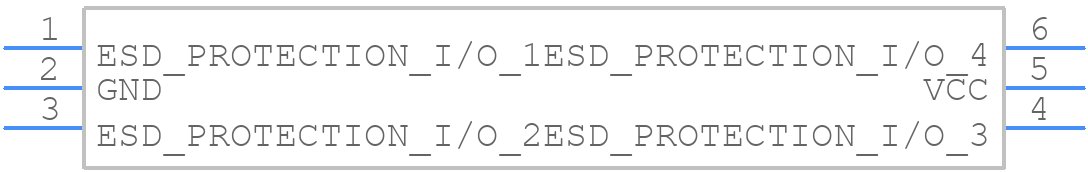

PRTR5V0U4Y,125 - Nexperia - PCB symbol
click to zoom
PCB Footprints
PRTR5V0U4Y,125 - Nexperia PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT-363 (SC-88)
click to zoom
3D Models
PRTR5V0U4Y,125 - Nexperia - 3D model - SOT23 (6-Pin) - SOT-363 (SC-88)
click to zoom

PRTR5V0U4Y,125 Details

  • Manufacturer Part Number:

    PRTR5V0U4Y,125

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    SC-88, SOT-363, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    SOT363

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    2017-02-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Breakdown Voltage-Max:

    9 V

  • Breakdown Voltage-Min:

    6 V

  • Breakdown Voltage-Nom:

    7.5 V

  • Configuration:

    SINGLE, 4 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    IEC-60134; IEC-61000-4-2

  • Rep Pk Reverse Voltage-Max:

    3 V

  • Reverse Current-Max:

    0.1 µA

  • Reverse Test Voltage:

    3 V

  • Surface Mount:

    YES

  • Technology:

    ZENER

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

PRTR5V0U4Y,125 Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Ensure the device is operated within the specified junction temperature range (Tj) of -40°C to 150°C. Use a heat sink or thermal interface material to maintain a safe junction temperature.
  • The PRTR5V0U4Y,125 has built-in ESD protection, but it's still recommended to follow standard ESD handling precautions during assembly and handling. Use an ESD wrist strap or mat, and avoid touching the device pins.
  • Yes, the PRTR5V0U4Y,125 is AEC-Q100 qualified, making it suitable for automotive and high-reliability applications. However, ensure you follow the recommended operating conditions and design guidelines.
  • Use a multimeter to measure voltage and current at the input and output pins. Check for proper PCB layout, decoupling, and thermal management. Consult the datasheet and application notes for guidance on troubleshooting common issues.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PRTR5V0U4Y,125 Overview

Use the download button to access the PRTR5V0U4Y,125 schematic symbol, PCB footprint, and 3D model.
