Skyworks provides a recommended PCB layout and land pattern in their application note AN40465, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
The PS088-315 has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Refer to the application note AN40465 for more details.
The PS088-315 is rated for operation from -40°C to +125°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range. It's essential to ensure the device is operated within the recommended temperature range for optimal performance.
Skyworks provides a troubleshooting guide in their application note AN40465, which covers common issues and their possible causes. Additionally, ensure that the device is properly biased, and the input and output matching networks are optimized for the specific application.
Yes, the PS088-315 is a sensitive device and requires proper ESD handling and storage precautions. Follow standard ESD handling procedures, such as using an ESD wrist strap, mat, or workstation, and store the devices in anti-static packaging to prevent damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PS088-315 Overview

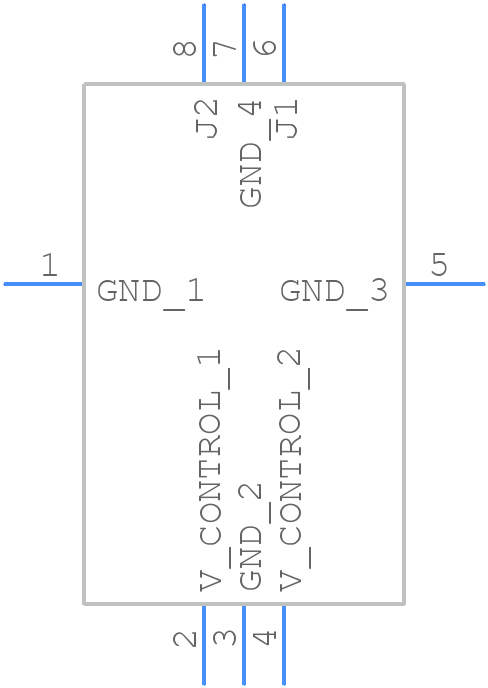

Use the download button to access the PS088-315 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PS088,
or try a keyword search, such as RF/Microwave Phase Shifters
