PS6KV50-105A3030-I- - PIHER

Description: Trimmer, Single Turn, Carbon, Top Adjust, 1 Mohm, Surface Mount, 1 Turns

Download PS6KV50-105A3030-I- Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this PS6KV50-105A3030-I- model

Email notifications will be applied after download.

Send part feedback

Symbol

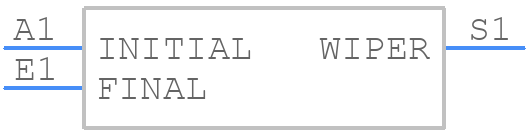

PS6KV50-105A3030-I- - PIHER - PCB symbol

PCB Footprints

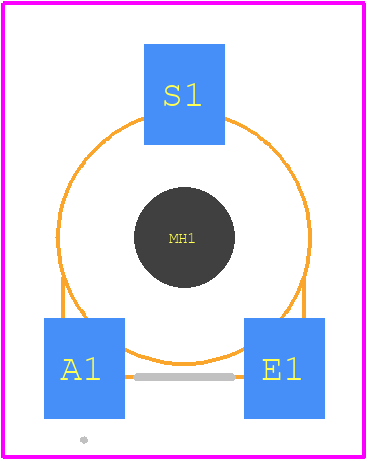

PS6KV50-105A3030-I- - PIHER PCB footprint - Other - Other - PS6KV50-105A3030-I--1

Datasheet Download Datasheet
Stock & Prices Price & Stock for PS6KV50-105A3030-I-
Part Number PS6KV50-105A3030-I-
Manufacturer PIHER
Pin Count 3
Part Category Variable Resistor
Package Category Other
Footprint Name Other - PS6KV50-105A3030-I--1
Released Date Mar 23, 2026
Last Modified Date Mar 23, 2026 12:25 PM UTC
Pinout / Pin List Click Here (Member Only)

PS6KV50-105A3030-I- Details

Manufacturer Part Number:
PS6KV50-105A3030-I-
Manufacturer:
Amphenol Piher

Trust Checks

Community Provided

System Verified

Community Approved

PS6KV50-105A3030-I- Overview

Use the download button to access the PS6KV50-105A3030-I- schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like PS6KV, or try a keyword search, such as Potentiometers
