Description:The PS8352AL2 is an optically coupled isolation amplifier that uses an IC with a high-accuracy sigma-delta A/D converter and an AlGaAs light-emitting diode with high-speed response and high luminance efficiency on the input side, and an IC with a high-accuracy D/A converter on the output side. The PS8352AL2 is designed specifically for high common mode transient immunity (CMTI) and high linearity (nonlinearity). The PS8352AL2 is designed for current and voltage sensing.
Renesas provides a recommended PCB layout guide in their application note (APN) document, which includes thermal design considerations, such as thermal vias, copper pours, and component placement. It's essential to follow these guidelines to ensure optimal thermal performance and prevent overheating.
The PS8352AL2-V-E3-AX has an internal overcurrent protection (OCP) feature, but it's not enabled by default. To implement OCP, you need to connect an external resistor (Rocp) between the OCP pin and GND, and set the OCP threshold voltage (Vocp) according to the datasheet. Additionally, you can use an external circuit to detect overcurrent conditions and shut down the device if necessary.
The recommended input capacitor value is 10uF to 22uF, with an X7R or X5R dielectric type. The capacitor should be placed as close as possible to the VIN pin and have a low ESR (Equivalent Series Resistance) to ensure stable operation and minimize voltage ripple.
The output voltage of the PS8352AL2-V-E3-AX can be adjusted by connecting a resistor divider network between the VOUT pin, the FB pin, and GND. The resistor values can be calculated using the formula provided in the datasheet. Additionally, you can use an external voltage reference or a digital potentiometer to adjust the output voltage.
The maximum ambient temperature range for the PS8352AL2-V-E3-AX is -40°C to +105°C. However, the device's performance and reliability may degrade at higher temperatures, so it's essential to ensure proper thermal design and cooling mechanisms are in place.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PS8352AL2-V-E3-AX Overview

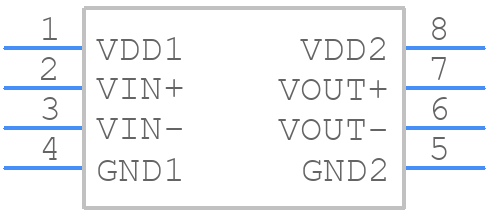

Use the download button to access the PS8352AL2-V-E3-AX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PS835,
or try a keyword search, such as Isolation Amplifiers
