Description:The PS8551AL4 is an optically coupled isolation amplifier that uses an IC with a high-accuracy sigma-delta A/D converter and a GaAIAs light-emitting diode with high-speed response and high luminance efficiency on the input side, and an IC with a high-accuracy D/A converter on the output side. The PS8551AL4 is designed specifically for high common mode transient immunity (CMTI) and high linearity (nonlinearity). The PS8551AL4 is designed for current and voltage sensing.
Renesas provides a recommended PCB layout guide in their application note (APN) document, which includes thermal design considerations, such as copper pour, thermal vias, and component placement. It's essential to follow these guidelines to ensure optimal thermal performance and prevent overheating.
The PS8551AL4-V-E3-AX has an internal OVP circuit, but it's recommended to add external OVP components, such as a zener diode or a dedicated OVP IC, to provide additional protection against voltage surges or spikes. The specific implementation will depend on the system's requirements and voltage rails.
While the datasheet provides guidelines for output filter capacitors, the maximum allowed capacitance depends on the specific application and PCB layout. As a general rule, it's recommended to keep the output capacitance below 10uF to prevent stability issues. However, it's essential to perform simulations and testing to determine the optimal capacitance value for your specific design.
To ensure EMC compliance, follow Renesas' guidelines for PCB layout, component selection, and shielding. Additionally, consider implementing EMI filters, such as common-mode chokes or ferrite beads, to reduce electromagnetic radiation. It's also essential to perform EMC testing and certification according to relevant standards, such as CISPR or FCC.
The recommended startup sequence involves applying the input voltage (VIN) first, followed by the enable signal (EN). This ensures that the internal voltage regulators and other circuits are properly initialized. It's essential to follow the recommended startup sequence to prevent damage or malfunction.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PS8551AL4-V-E3-AX Overview

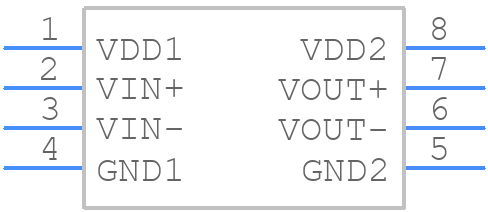

Use the download button to access the PS8551AL4-V-E3-AX schematic symbol and PCB footprint.
