PSC-2-1W+ - Mini-Circuits

Description: Combiner, 1MHz Min, 650MHz Max, 1dB Insertion Loss-Max

Download PSC-2-1W+ Model

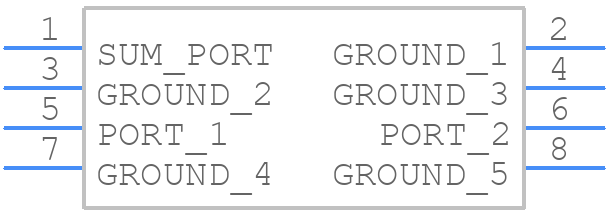

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PSC-2-1W+ - Mini-Circuits PCB footprint - Other - Other - PSC-2-1W+-5
click to zoom
3D Models
PSC-2-1W+ - Mini-Circuits  - 3D model - Other - PSC-2-1W+-5
click to zoom

PSC-2-1W+ Details

  • Manufacturer Part Number:

    PSC-2-1W+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CASE A01, 8 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Additional Feature:

    ISOLATION-MIN (DB):20

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    1 dB

  • JESD-609 Code:

    e3/e2

  • Operating Frequency-Max:

    650 MHz

  • Operating Frequency-Min:

    1 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    COMBINER

  • Terminal Finish:

    TIN/TIN SILVER

  • VSWR-Max:

    1.28
