PSK-10D-5 footprint, schematic symbol and 3D model by CUI Inc.

Symbol

click to zoom

PCB Footprints

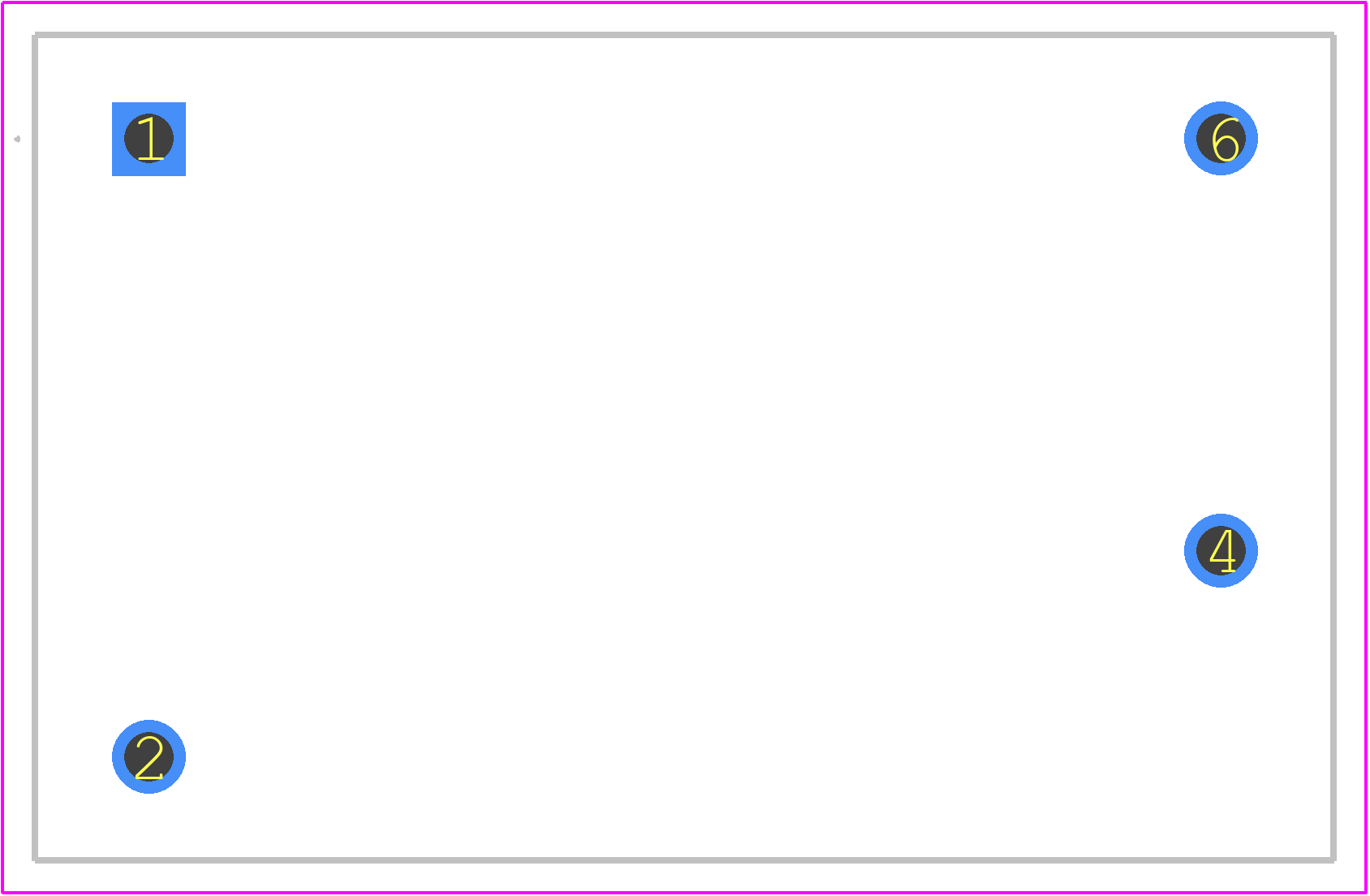

PSK-10D-5 - CUI Inc. PCB footprint - Other - Other - PSK-10D-5-1

click to zoom

3D Models

PSK-10D-5 - CUI Inc. - 3D model - Other - PSK-10D-5-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PSK-10D-5
Part Number PSK-10D-5
Manufacturer CUI Inc.
Pin Count 4
Part Category Power Supply
Package Category Other
Footprint Name Other - PSK-10D-5-1
Released Date Apr 30, 2024
Last Modified Date Apr 7, 2025 11:56 AM UTC
Pinout / Pin List Click Here (Member Only)

PSK-10D-5 Details

Manufacturer Part Number:
PSK-10D-5
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
ECCN Code:
EAR99
Manufacturer:
CUI Inc
YTEOL:
3
Analog IC - Other Type:
AC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CE, EN, IEC, UL
Efficiency (Main Output):
79%
Input Voltage-Max:
305 V
Input Voltage-Min:
85 V
Input Voltage-Nom:
115 V
JESD-30 Code:
R-PDMA-P4
Length:
40 mm
Line Regulation-Max:
0.5%
Load Regulation-Max:
1%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
4
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
2 A
Output Voltage-Max:
5.1 V
Output Voltage-Min:
4.9 V
Output Voltage-Nom:
5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Protections:
OVER VOLTAGE, OVER CURRENT, SHORT CIRCUIT
Ripple Voltage (Main Out):
0.03535 Vrms
Seated Height-Max:
21.5 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
10 W
Trim/Adjustable Output:
NO
Width:
25.4 mm

PSK-10D-5 Frequently Asked Questions (FAQs)

CUI recommends a PCB layout with a solid ground plane and a thermal pad connected to a heat sink or a thermal via to ensure efficient heat dissipation. A minimum of 2 oz copper thickness is recommended for the PCB.
The PSK-10D-5 has built-in input voltage transient protection, which can withstand voltage spikes up to 100 V for 100 ms. However, it's still recommended to add external transient voltage suppression devices for added protection.
CUI recommends keeping the output voltage sense lines as short as possible, but a maximum length of 10 inches (25 cm) is acceptable. Longer lengths may cause accuracy issues due to voltage drops and noise.
Yes, the PSK-10D-5 can be used in a redundant or N+1 configuration, but it requires additional external circuitry to ensure proper synchronization and fault detection. CUI provides application notes and design guides for such configurations.
CUI provides an MTBF rating of 1.5 million hours at 40°C ambient temperature, calculated according to MIL-HDBK-217F. However, actual MTBF may vary depending on the application and operating conditions.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

PSK-10D-5 Overview

Use the download button to access the PSK-10D-5 schematic symbol, PCB footprint, and 3D model.
