PSK-S10C-12 footprint, schematic symbol and 3D model by CUI Inc.

Symbol

click to zoom

PCB Footprints

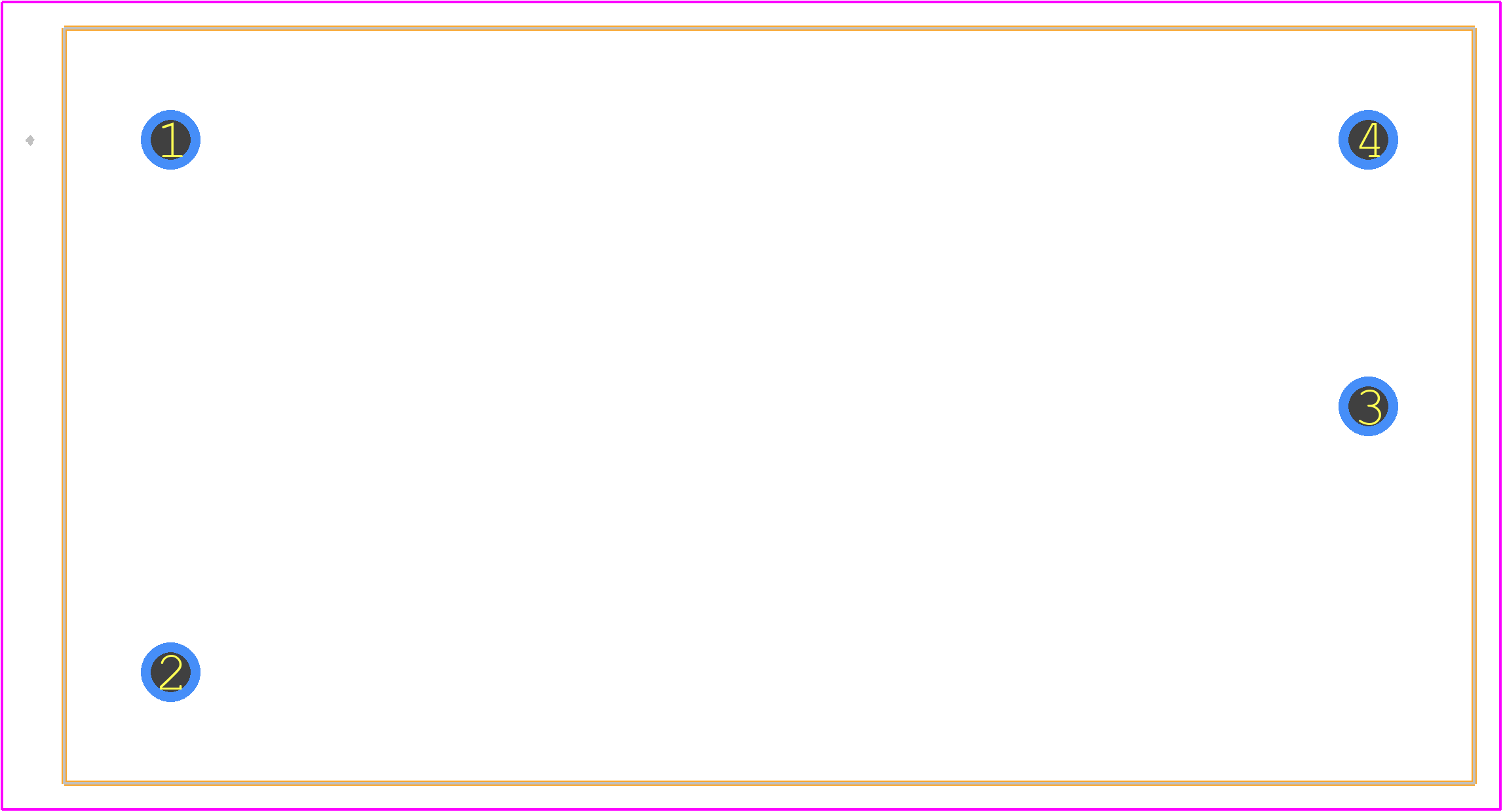

PSK-S10C-12 - CUI Inc. PCB footprint - Other - Other - PSK-S10C-12-2

click to zoom

3D Models

PSK-S10C-12 - CUI Inc. - 3D model - Other - PSK-S10C-12-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PSK-S10C-12
Part Number PSK-S10C-12
Manufacturer CUI Inc.
Pin Count 4
Part Category Power Supply
Package Category Other
Footprint Name Other - PSK-S10C-12-2
Released Date Oct 23, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

PSK-S10C-12 Details

Manufacturer Part Number:
PSK-S10C-12
Brand Name:
CUI Inc
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
Date Of Intro:
2019-05-07
Manufacturer:
CUI Inc
YTEOL:
0
Analog IC - Other Type:
AC-DC REGULATED POWER SUPPLY MODULE
Approvals:
EN, IEC, UL
Control Mode:
VOLTAGE-MODE
Efficiency (Main Output):
81%
Input Voltage-Max:
264 V
Input Voltage-Min:
85 V
Input Voltage-Nom:
115 V
JESD-30 Code:
R-PDMA-P4
Length:
53.8 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
4
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.9 A
Output Voltage-Max:
12.24 V
Output Voltage-Min:
11.76 V
Output Voltage-Nom:
12 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Protections:
OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Ripple Voltage (Main Out):
0.03535 Vrms
Seated Height-Max:
19.5 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
10 W
Trim/Adjustable Output:
NO
Width:
28.8 mm

PSK-S10C-12 Frequently Asked Questions (FAQs)

CUI recommends a PCB layout with a solid ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, ensure a minimum of 1mm clearance around the module for airflow and heat dissipation.
To ensure reliable startup and shutdown, CUI recommends a soft-start circuit to limit inrush current. Additionally, a delay of at least 10ms between startup and shutdown is recommended to prevent damage to the module.
The maximum allowable capacitance on the output is 2200uF. Exceeding this value may cause instability or oscillation in the power supply.
While the PSK-S10C-12 is designed to be rugged, it's recommended to follow CUI's guidelines for vibration testing and mounting. Ensure the module is securely fastened to the PCB and consider adding additional mechanical support for high-vibration applications.
CUI recommends using an oscilloscope to monitor the output voltage and current. Check the input voltage, output load, and PCB layout for any issues. Consult the datasheet and application notes for troubleshooting guides and fault detection methods.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

PSK-S10C-12 Overview

Use the download button to access the PSK-S10C-12 schematic symbol, PCB footprint, and 3D model.
