CUI recommends a PCB layout with a solid ground plane and thermal vias to dissipate heat. A minimum of 1 oz copper thickness is recommended. Additionally, a thermal pad on the bottom of the device can help to improve heat dissipation.
CUI recommends following the recommended soldering profile and using a solder with a melting point below 240°C. Avoid applying excessive force or pressure during assembly, and ensure that the device is handled by the edges to prevent damage to the pins.
While the datasheet specifies an operating temperature range of -40°C to 85°C, CUI recommends derating the device's output power by 1.5% per degree above 60°C to ensure reliable operation.
Common issues can often be attributed to inadequate input decoupling, poor PCB layout, or incorrect component selection. Verify that the input capacitors meet the recommended specifications, and ensure that the PCB layout follows the recommended guidelines. Additionally, check for any signs of overheating or excessive current draw.
Yes, CUI recommends following proper EMI/EMC design practices, including using a shielded enclosure, minimizing loop areas, and using EMI filters or common-mode chokes as necessary. Additionally, ensure that the device is placed at least 10 mm away from any sensitive analog circuits.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PSK-S10C-5 Overview

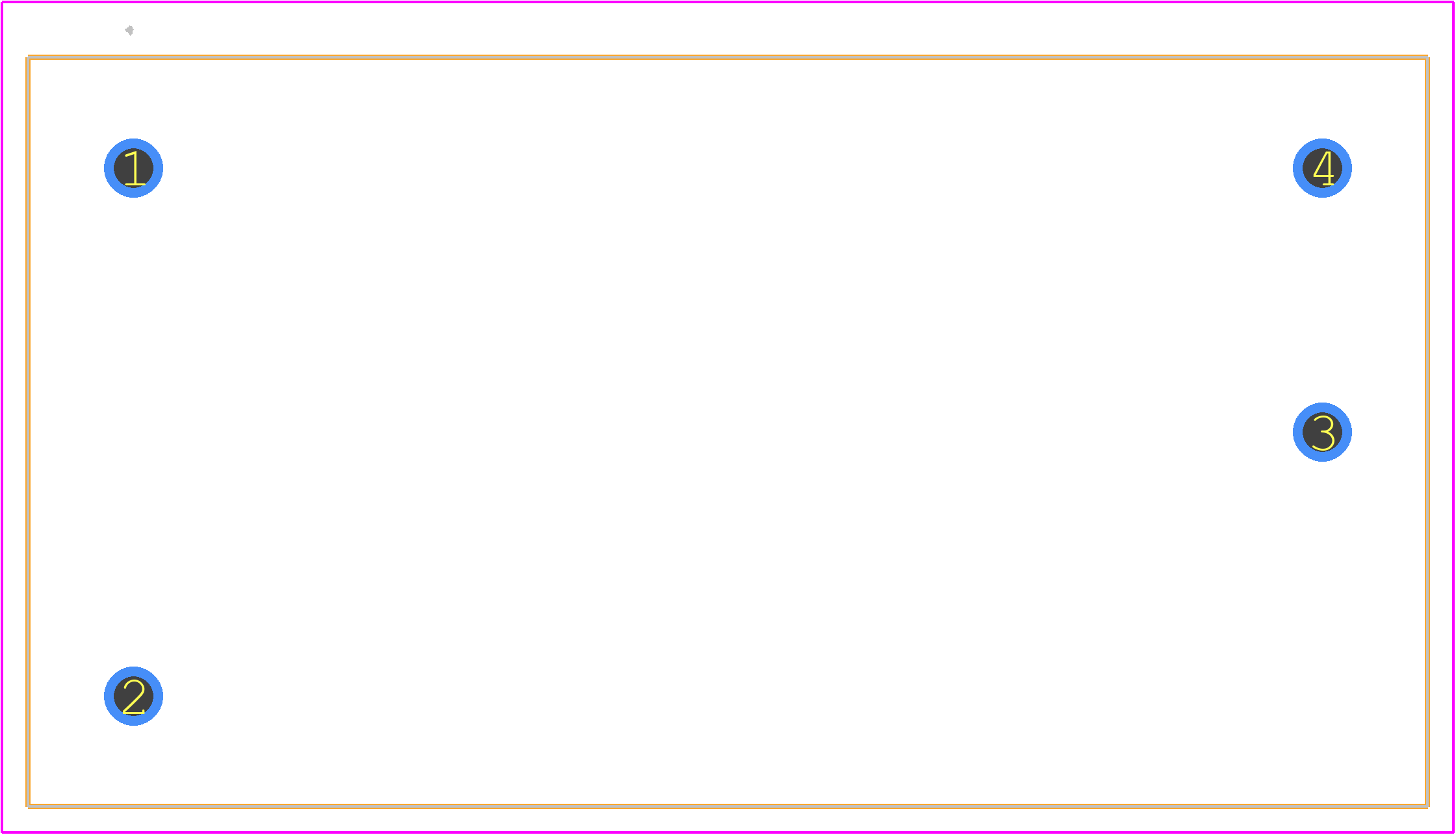

Use the download button to access the PSK-S10C-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PSK-S,
or try a keyword search, such as Power Supply Modules
