PSK-S12B-24 footprint, schematic symbol and 3D model by CUI Inc.

Symbol

click to zoom

PCB Footprints

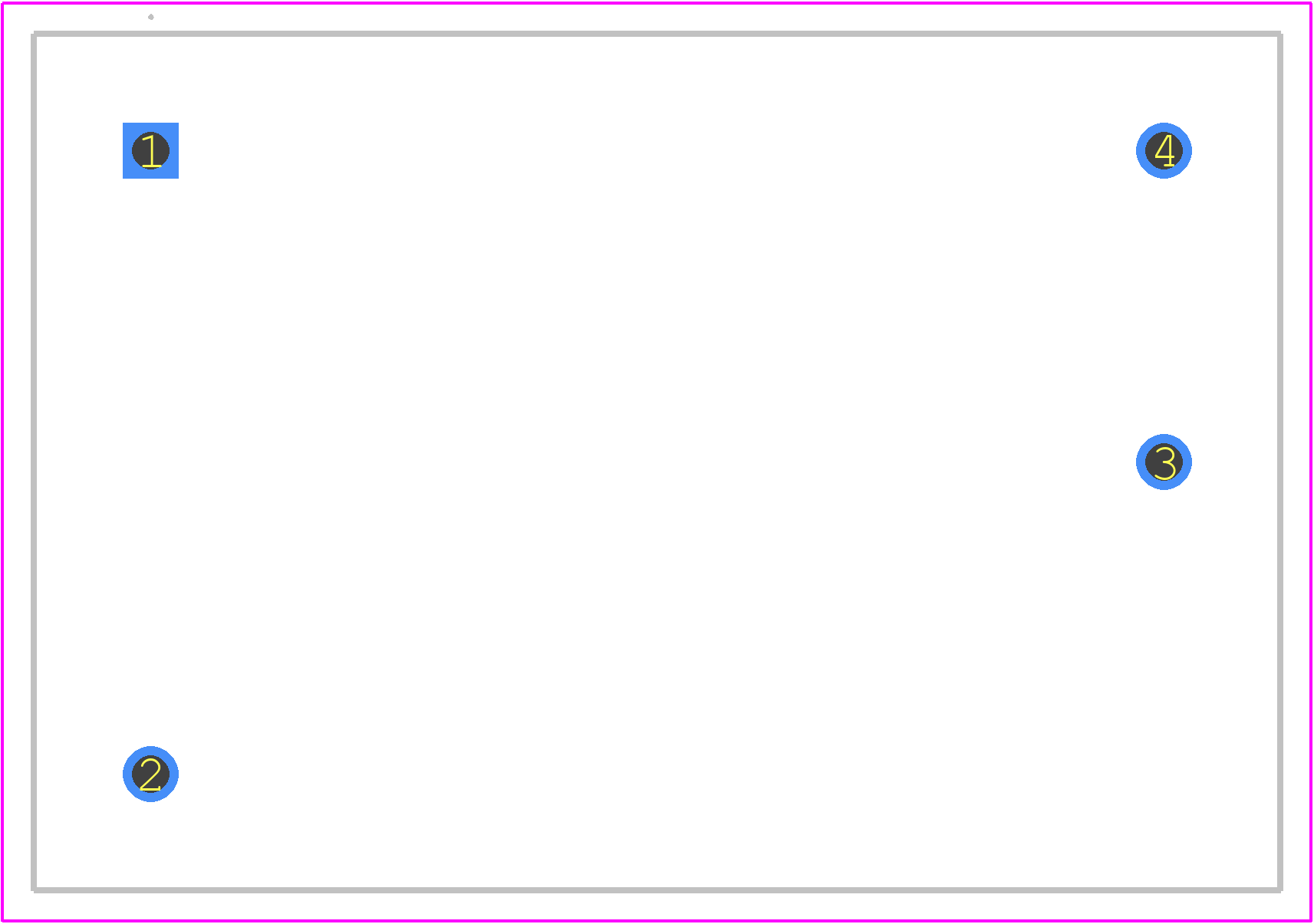

PSK-S12B-24 - CUI Inc. PCB footprint - Other - Other - PSK-S12B-24-2

click to zoom

3D Models

PSK-S12B-24 - CUI Inc. - 3D model - Other - PSK-S12B-24-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PSK-S12B-24
Part Number PSK-S12B-24
Manufacturer CUI Inc.
Pin Count 4
Part Category Power Supply
Package Category Other
Footprint Name Other - PSK-S12B-24-2
Released Date Jul 22, 2023
Last Modified Date Apr 7, 2025 11:56 AM UTC
Pinout / Pin List Click Here (Member Only)

PSK-S12B-24 Details

Manufacturer Part Number:
PSK-S12B-24
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
Package Description:
PACKAGE-4
ECCN Code:
EAR99
Date Of Intro:
2020-03-10
Manufacturer:
CUI Inc
YTEOL:
7
Analog IC - Other Type:
AC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CE, EN, IEC, UL
Efficiency (Main Output):
87%
Input Voltage-Max:
264 V
Input Voltage-Min:
90 V
Input Voltage-Nom:
100 V
JESD-30 Code:
R-XDMA-P4
Length:
40.64 mm
Line Regulation-Max:
1%
Load Regulation-Max:
1%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
4
Operating Temperature-Max:
75 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.5 A
Output Voltage-Max:
24.48 V
Output Voltage-Min:
23.52 V
Output Voltage-Nom:
24 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Protections:
OVER VOLTAGE, SHORT CIRCUIT
Ripple Voltage (Main Out):
0.08484 Vrms
Seated Height-Max:
20.1 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
12 W
Trim/Adjustable Output:
NO
Warm-up Time:
3 s
Width:
27.94 mm

PSK-S12B-24 Frequently Asked Questions (FAQs)

CUI recommends a PCB layout with a solid ground plane and thermal vias to dissipate heat. A minimum of 1 oz copper thickness is recommended. Additionally, ensure good airflow around the device and consider using a heat sink if operating in high-temperature environments.
To ensure reliable startup and shutdown, CUI recommends a soft-start circuit to limit inrush current and reduce stress on the power supply. Additionally, ensure that the input voltage is within the specified range and that the output is properly decoupled.
The maximum allowable capacitance on the output of the PSK-S12B-24 is 2200uF. Exceeding this value may cause instability or oscillation in the power supply.
Yes, the PSK-S12B-24 can be used in a redundant or parallel configuration, but it requires additional external circuitry to ensure proper operation and fault tolerance. Consult with CUI's application engineers for guidance on implementing such a configuration.
The PSK-S12B-24 is designed to meet a minimum of 500,000 hours MTBF (Mean Time Between Failures) at 25°C, with a calculated lifespan of 10-15 years in a typical industrial environment. However, actual lifespan may vary depending on operating conditions and environmental factors.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

PSK-S12B-24 Overview

Use the download button to access the PSK-S12B-24 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PSK-S, or try a keyword search, such as Power Supply Modules
