PSM01-081A-103B2 - Bourns

Description: 10 kOhms 0.5W, 1/2W Through Hole Slide Potentiometer Top Adjustment Type

Download PSM01-081A-103B2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

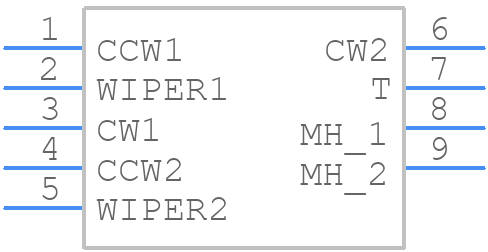

Symbol
PSM01-081A-103B2 - Bourns - PCB symbol
click to zoom

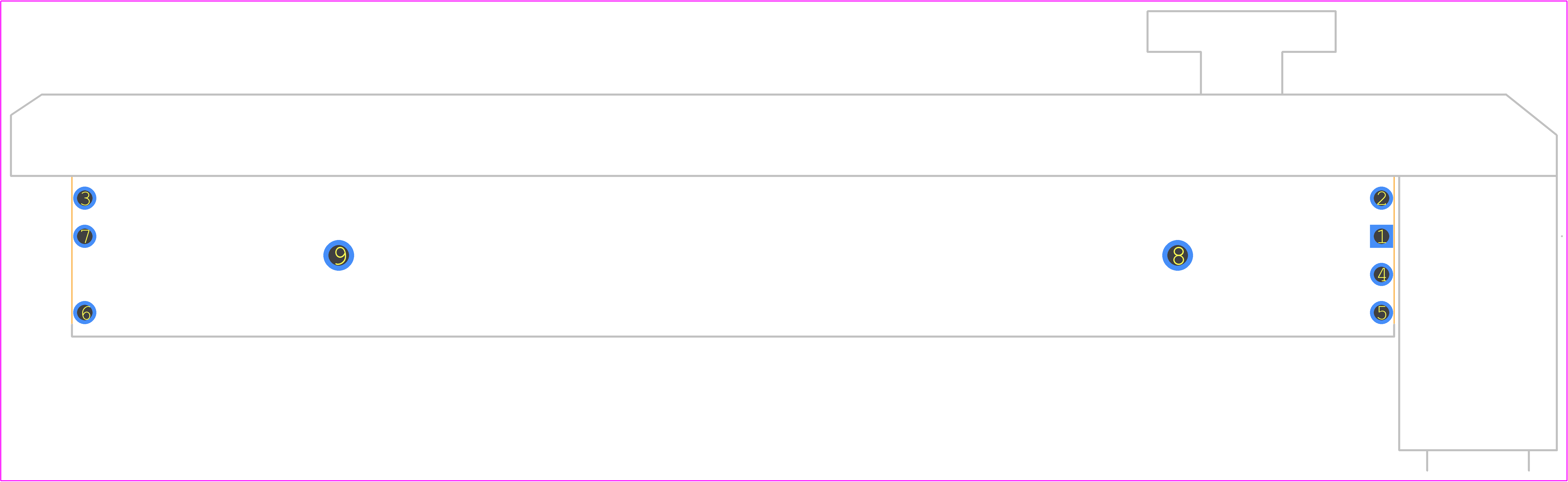

PCB Footprints
PSM01-081A-103B2 - Bourns PCB footprint - Other - Other - PSM01-081A-103B2
click to zoom
3D Models
PSM01-081A-103B2 - Bourns - 3D model - Other - PSM01-081A-103B2
click to zoom

PSM01-081A-103B2 Details

  • Manufacturer Part Number:

    PSM01-081A-103B2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.80.70

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6.5

  • Actuator Orientation:

    VERTICAL

  • Actuator Type:

    SLIDE

  • Construction:

    Rectangular

  • Ganging Number:

    1

  • JESD-609 Code:

    e3

  • Mounting Feature:

    PCB MOUNT

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    55 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Height:

    35 mm

  • Package Length:

    152 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    PCB Mount

  • Package Width:

    13 mm

  • Rated Power Dissipation (P):

    0.5 W

  • Resistance:

    10000 Ω

  • Resistance Law:

    LINEAR

  • Resistor Type:

    POTENTIOMETER

  • Surface Mount:

    NO

  • Technology:

    CARBON

  • Terminal Finish:

    TIN

  • Terminal Shape:

    FLAT

  • Tolerance:

    20%

  • Working Voltage:

    10 V

PSM01-081A-103B2 Frequently Asked Questions (FAQs)

  • A symmetrical layout with a solid ground plane and minimal signal trace length is recommended. Keep the input and output traces separate and avoid crossing them to minimize noise and crosstalk.
  • Use a soldering iron with a temperature of 250°C to 270°C. Apply a small amount of solder paste to the pads and use a gentle touch to avoid damaging the component. Ensure the component is properly aligned and seated before soldering.
  • The maximum operating temperature range for the PSM01-081A-103B2 is -40°C to 125°C. However, it's recommended to operate within the specified temperature range for optimal performance and reliability.
  • Yes, the PSM01-081A-103B2 is designed to withstand high-vibration environments. However, it's recommended to follow proper mounting and soldering techniques to ensure the component remains securely attached to the PCB.
  • Use a multimeter to measure voltage and current at the input and output pins. Check for signs of overheating, physical damage, or corrosion. Consult the datasheet and application notes for troubleshooting guidelines specific to the PSM01-081A-103B2.
