PSMN4R2-30MLD/2X footprint, schematic symbol and 3D model by Nexperia

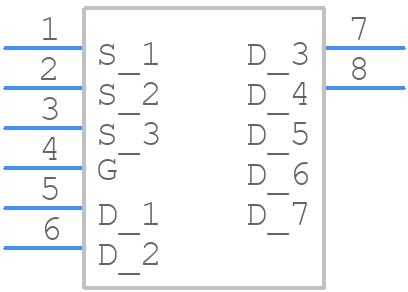

Symbol

click to zoom

PCB Footprints

PSMN4R2-30MLD/2X - Nexperia PCB footprint - Other - Other - LFPAK33 (SOT1210)_2022

click to zoom

3D Models

PSMN4R2-30MLD/2X - Nexperia - 3D model - Other - LFPAK33 (SOT1210)_2022

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PSMN4R2-30MLD/2X
Part Number PSMN4R2-30MLD/2X
Manufacturer Nexperia
Pin Count 11
Part Category MOSFET (N-Channel)
Package Category Other
Footprint Name Other - LFPAK33 (SOT1210)_2022
Released Date Oct 27, 2023
Last Modified Date Oct 27, 2023 12:23 PM UTC
Pinout / Pin List Click Here (Member Only)

PSMN4R2-30MLD/2X Details

Manufacturer Part Number:
PSMN4R2-30MLD/2X
Manufacturer:
Nexperia

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

PSMN4R2-30MLD/2X Overview

Use the download button to access the PSMN4R2-30MLD/2X schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PSMN4, or try a keyword search, such as Power Field-Effect Transistors

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
