PSMN6R1-40HL footprint, schematic symbol and 3D model by Nexperia

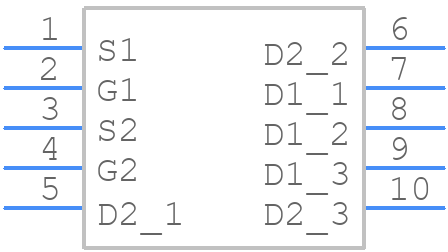

Symbol

click to zoom

PCB Footprints

PSMN6R1-40HL - Nexperia PCB footprint - Other - Other - PSMN6R1-40HL-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PSMN6R1-40HL
Part Number PSMN6R1-40HL
Manufacturer Nexperia
Pin Count 10
Part Category MOSFET (N-Channel)
Package Category Other
Footprint Name Other - PSMN6R1-40HL-1
Released Date Nov 26, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

PSMN6R1-40HL Details

Manufacturer Part Number:
PSMN6R1-40HL
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SOT-1205, SOP-8
Manufacturer:
Nexperia

Trust Checks

Community Provided

System Verified

Community Approved

PSMN6R1-40HL Overview

Use the download button to access the PSMN6R1-40HL schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like PSMN6, or try a keyword search, such as Power Field-Effect Transistors
