PSR100KTQFL3L00 - ROHM Semiconductor

Description: 6432 (2512) size, 4W, 3mΩ, High Power Type Metal Plate Shunt Resistor (AEC-Q200 Qualified)

Download PSR100KTQFL3L00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PSR100KTQFL3L00 - ROHM Semiconductor - PCB symbol
click to zoom

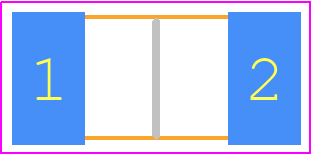

PCB Footprints
PSR100KTQFL3L00 - ROHM Semiconductor PCB footprint - Resistor Chip - Resistor Chip - PSR100
click to zoom
3D Models
PSR100KTQFL3L00 - ROHM Semiconductor - 3D model - Resistor Chip - PSR100
click to zoom

PSR100KTQFL3L00 Details

  • Manufacturer Part Number:

    PSR100KTQFL3L00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    10

  • Construction:

    Rectangular

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -65 °C

  • Package Height:

    0.75 mm

  • Package Length:

    6.35 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    3.05 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Rated Power Dissipation (P):

    4 W

  • Rated Temperature:

    75 °C

  • Reference Standard:

    AEC-Q200; IATF 16949

  • Resistance:

    0.003 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL PLATE

  • Temperature Coefficient:

    0,50 ppm/°C

  • Terminal Shape:

    GULL WING

  • Tolerance:

    1%

  • Working Voltage:

    0.1095 V

PSR100KTQFL3L00 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the IC, and a 2-layer or 4-layer PCB with a thermal relief pattern is suggested to improve heat dissipation.
  • Monitor the input voltage, output current, and ambient temperature to ensure they are within the specified ranges. Also, ensure proper thermal management and PCB design.
  • A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 4.7uF to 10uF is recommended for input decoupling, depending on the specific application requirements.
  • Yes, the PSR100KTQFL3L00 is AEC-Q100 qualified and suitable for automotive and high-reliability applications, but ensure compliance with specific industry standards and regulations.
  • Check the input voltage, output current, and ambient temperature. Verify proper PCB design, thermal management, and component selection. Consult the datasheet and application notes for troubleshooting guidelines.
