Part Image

PSR400ITQFH1L00 - ROHM Semiconductor

Description: 10x5.2 (3921) size, 8W, 1mΩ, High Power Type Metal Plate Shunt Resistor (AEC-Q200 Qualified)

Download PSR400ITQFH1L00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PSR400ITQFH1L00 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints

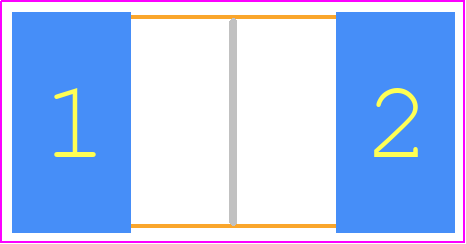

PSR400ITQFH1L00 - ROHM Semiconductor PCB footprint - Resistor Chip - Resistor Chip - PSR400_1
click to zoom
3D Models
PSR400ITQFH1L00 - ROHM Semiconductor - 3D model - Resistor Chip - PSR400_1
click to zoom

PSR400ITQFH1L00 Details

  • Manufacturer Part Number:

    PSR400ITQFH1L00

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    10

  • Construction:

    Rectangular

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -65 °C

  • Package Height:

    0.9 mm

  • Package Length:

    10 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    5.2 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Rated Power Dissipation (P):

    8 W

  • Rated Temperature:

    75 °C

  • Reference Standard:

    AEC-Q200; IATF 16949

  • Resistance:

    0.001 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    3921

  • Surface Mount:

    YES

  • Technology:

    METAL PLATE

  • Temperature Coefficient:

    0,75 ppm/°C

  • Terminal Shape:

    GULL WING

  • Tolerance:

    1%

  • Working Voltage:

    0.0894 V

PSR400ITQFH1L00 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for PSR400ITQFH1L00 is 2.7V to 5.5V.
  • To ensure reliability in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet, and to consider using a heat sink or thermal management system to keep the device within its recommended operating temperature range.
  • The maximum current rating for the PSR400ITQFH1L00 is 400mA. Exceeding this rating may cause damage to the device.
  • To handle ESD protection for the PSR400ITQFH1L00, it is recommended to follow proper ESD handling procedures, such as using an ESD wrist strap or mat, and to ensure that the device is properly grounded during handling and assembly.
  • The recommended storage temperature range for PSR400ITQFH1L00 is -40°C to 125°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PSR400ITQFH1L00 Overview

Use the download button to access the PSR400ITQFH1L00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PSR40, or try a keyword search, such as Metal Strip Resistor
