PT01-D120D-B503 - Same Sky

Description: 10 mm, Vertical, Linear, 50 kΩ, Through Hole, D-cut Rotary Potentiometer

Download PT01-D120D-B503 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

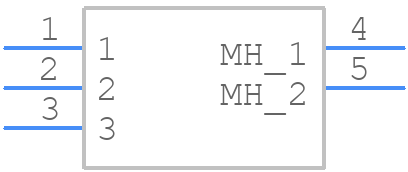

Symbol
PT01-D120D-B503 - Same Sky - PCB symbol
click to zoom

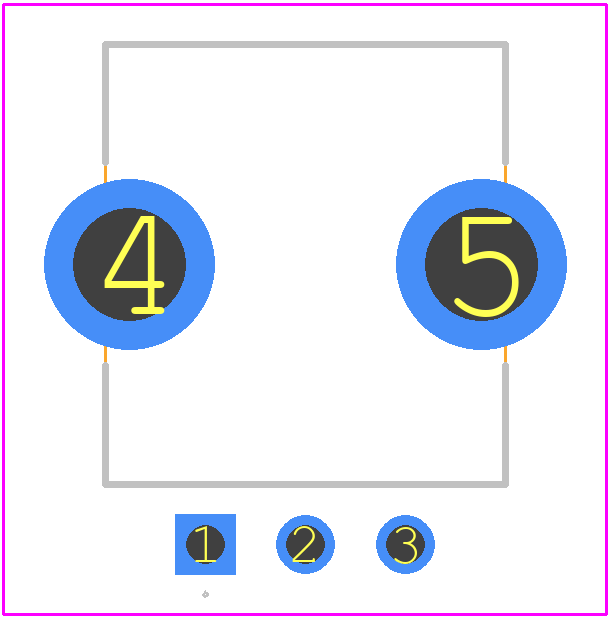

PCB Footprints
PT01-D120D-B503 - Same Sky PCB footprint - Other - Other - PT01-Dx
click to zoom
3D Models
PT01-D120D-B503 - Same Sky - 3D model - Other - PT01-Dx
click to zoom

PT01-D120D-B503 Details

  • Manufacturer Part Number:

    PT01-D120D-B503

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.80.70

  • Manufacturer:

    Same Sky

  • YTEOL:

    7

  • Actuator Orientation:

    VERTICAL

  • Actuator Type:

    SHAFT

  • Additional Feature:

    RATED AC VOLTAGE (V): 50

  • Construction:

    Rectangular

  • Ganging Number:

    1

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    3

  • Number of Turns:

    1

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Height:

    6.8 mm

  • Package Length:

    11.4 mm

  • Package Style:

    Radial

  • Rated Power Dissipation (P):

    0.05 W

  • Resistance:

    50000 Ω

  • Resistance Law:

    LINEAR

  • Resistor Type:

    POTENTIOMETER

  • Rotational Angle:

    280 deg

  • Surface Mount:

    NO

  • Technology:

    CARBON

  • Terminal Shape:

    FLAT

  • Tolerance:

    20%

  • Working Voltage:

    20 V

PT01-D120D-B503 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions. It's essential to consult the installation manual or contact Same Sky's technical support for specific guidance.
  • Yes, the PT01-D120D-B503 is designed to be used in outdoor environments, but it's essential to ensure proper sealing and protection from moisture, dust, and extreme temperatures. Consult the environmental specifications and installation guidelines for more information.
  • The maximum cable length supported by the PT01-D120D-B503 is 100 meters. However, it's recommended to consult the datasheet and installation manual for specific guidance on cable length and installation requirements.
  • Yes, the PT01-D120D-B503 is designed to be compatible with other Same Sky products, including their sensors, controllers, and software. However, it's essential to consult the compatibility matrix and technical documentation to ensure seamless integration.
  • The typical lead time for delivery of the PT01-D120D-B503 is 2-4 weeks, depending on the quantity and shipping location. It's recommended to contact Same Sky's sales team or authorized distributors for the most up-to-date lead time information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PT01-D120D-B503 Overview

Use the download button to access the PT01-D120D-B503 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PT01-, or try a keyword search, such as Potentiometers

About Same Sky

Tracing our roots back to 1989 just outside of Portland, Oregon, Same Sky® (formerly CUI Devices) is an electronic components manufacturer dedicated to nurturing the spirit of innovation by caring more than is expected, embracing evolution, taking a holistic approach, and having fun along the away. We specialize in an ever-expanding range of product technologies, including audio, interconnect, motion, relay, sensor, switch and thermal management solutions.
