PT01-D125D-B503 - Same Sky

Description: 10 mm, Vertical, Linear, 50 kΩ, Through Hole, D-cut Rotary Potentiometer

Download PT01-D125D-B503 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

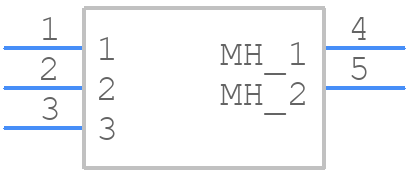

Symbol
PT01-D125D-B503 - Same Sky - PCB symbol
click to zoom

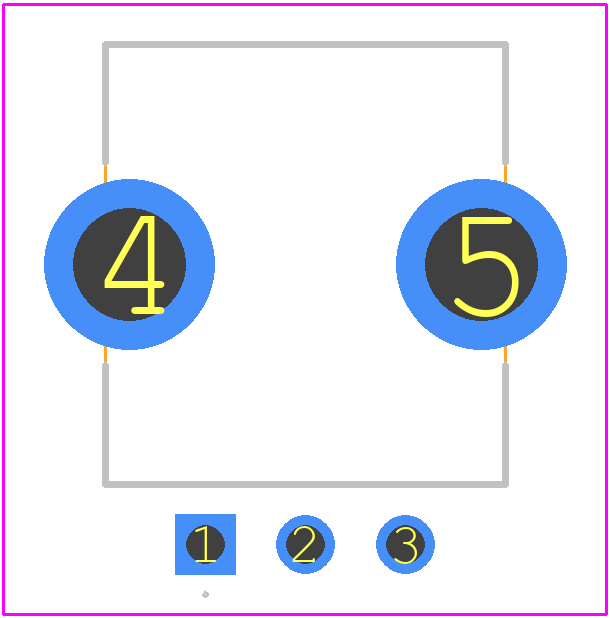

PCB Footprints
PT01-D125D-B503 - Same Sky PCB footprint - Other - Other - PT01-Dx
click to zoom
3D Models
PT01-D125D-B503 - Same Sky - 3D model - Other - PT01-Dx
click to zoom

PT01-D125D-B503 Details

  • Manufacturer Part Number:

    PT01-D125D-B503

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.80.70

  • Manufacturer:

    Same Sky

  • YTEOL:

    7

  • Actuator Orientation:

    VERTICAL

  • Actuator Type:

    SHAFT

  • Additional Feature:

    RATED AC VOLTAGE (V): 50

  • Construction:

    Rectangular

  • Ganging Number:

    1

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    3

  • Number of Turns:

    1

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Height:

    6.8 mm

  • Package Length:

    11.4 mm

  • Package Style:

    Radial

  • Rated Power Dissipation (P):

    0.05 W

  • Resistance:

    50000 Ω

  • Resistance Law:

    LINEAR

  • Resistor Type:

    POTENTIOMETER

  • Rotational Angle:

    280 deg

  • Surface Mount:

    NO

  • Technology:

    CARBON

  • Terminal Shape:

    FLAT

  • Tolerance:

    20%

  • Working Voltage:

    20 V

PT01-D125D-B503 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • No, the PT01-D125D-B503 is not certified for use in hazardous locations. It is designed for general-purpose industrial applications only.
  • The minimum load requirement is 10% of the rated output power. Operating below this threshold may affect the power supply's efficiency and stability.
  • Yes, you can parallel up to three units to increase the output power, but you must ensure that the units are identical and properly connected to avoid any damage or instability.
  • The MTBF rating is approximately 500,000 hours at 25°C, calculated according to MIL-HDBK-217F.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PT01-D125D-B503 Overview

Use the download button to access the PT01-D125D-B503 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PT01-, or try a keyword search, such as Potentiometers

About Same Sky

Tracing our roots back to 1989 just outside of Portland, Oregon, Same Sky® (formerly CUI Devices) is an electronic components manufacturer dedicated to nurturing the spirit of innovation by caring more than is expected, embracing evolution, taking a holistic approach, and having fun along the away. We specialize in an ever-expanding range of product technologies, including audio, interconnect, motion, relay, sensor, switch and thermal management solutions.
